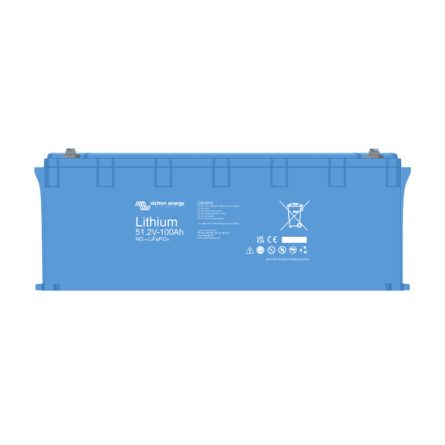

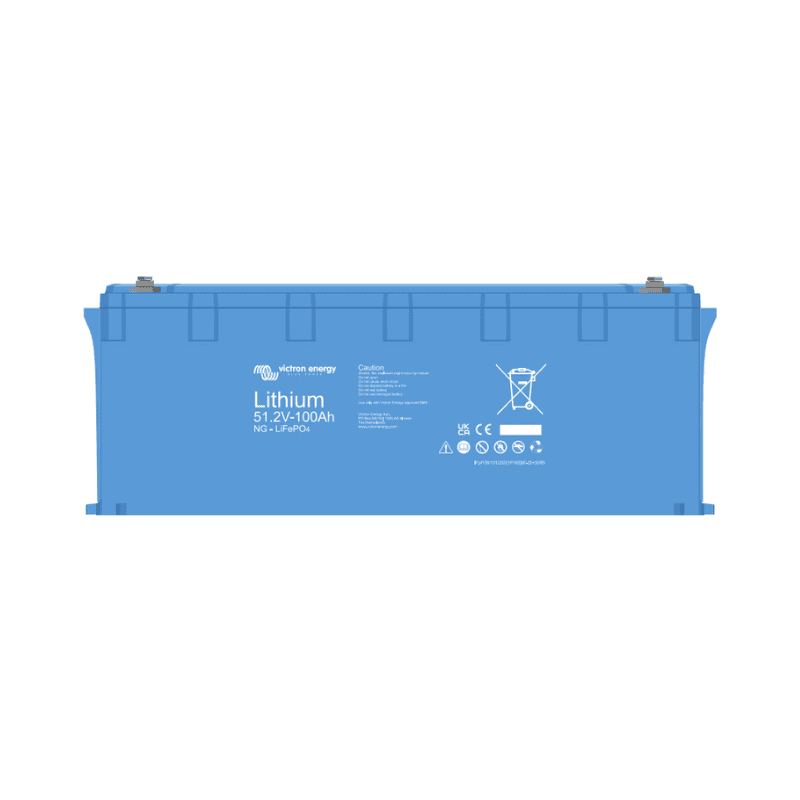

Victron Energy LiFePO4 Battery 51,2V/100Ah NG (BAT548110620)
    search
    • Victron Energy LiFePO4 Battery 51,2V/100Ah NG (BAT548110620)

    Victron Energy LiFePO4 Battery 51,2V/100Ah NG (BAT548110620)

    €1,748.93
    Tax included

    Victron Energy

    Victron Energy LiFePO4 Battery 51,2V/100Ah NG (BAT548110620). Original Victron Energy product identified by its manufacturer reference. Suitable for electrical, solar, marine and mobile systems when its specifications match the installation. BAT548110620.

    EAN/GTIN: 8719076064756

    Quantity

    Victron Lithium NG 51.2V 100Ah LiFePO4 battery (BAT548110620)

    The Victron Lithium NG 51.2 V 100 Ah is a lithium iron phosphate battery for 48 V energy-storage systems requiring high energy density, long service life and advanced monitoring. With 5,120 Wh of nominal energy, digital BMS communication and an IP65 enclosure, it is suitable for off-grid solar, residential self-consumption, marine and professional backup systems.

    This model belongs to Victron's NG generation and must be used with a separately purchased 500 A or 1,000 A Lynx Smart BMS NG. The BMS receives cell voltage and temperature data together with battery current, coordinates protection and provides Bluetooth monitoring for the system.

    Main features

    • Stable, efficient LiFePO4 chemistry for demanding cyclic use.
    • 51.2 V, 100 Ah and 5.12 kWh nominal in one battery.
    • Maximum continuous charge and discharge current: 100 A.
    • Maximum 10-second pulse current: 200 A.
    • Up to 2,500 cycles at 80% DoD, 3,000 at 70% and 5,000 at 50%.
    • High-speed digital communication through circular M8 connectors.
    • Repairable IP65 enclosure with mounting brackets included.
    • May be installed upright or on its side, but never with terminals facing down.

    Technical specifications

    Part numberBAT548110620
    TechnologyLiFePO4, Lithium NG range
    Nominal voltage51.2 V
    Nominal capacity100 Ah at 25 °C
    Nominal energy5,120 Wh
    Round-trip efficiency92%
    Maximum continuous current100 A charge and discharge
    Maximum current for 10 s200 A charge and discharge
    Charge voltage56–56.8 V
    Float voltage54 V
    End-of-discharge voltage44.8 V
    Power terminalsM8
    Protection ratingIP65
    Dimensions (H × W × D)235 × 648 × 162 mm
    Approximate weight37 kg
    Discharge temperature−20 °C to +50 °C
    Charge temperature+5 °C to +50 °C

    Applications and compatibility

    This battery is designed for 48 V banks in homes, off-grid photovoltaic systems, self-consumption, marine installations, mobility and backup power. Before ordering, check the operating voltage, required usable energy, inverter/charger current and available space. Installation requires a compatible NG BMS and correctly sized protection devices.

    Build a complete system with our solar batteries and storage solutions, battery monitors, connection cables and the wider Victron Energy range.

    Frequently asked questions

    Can it operate without a BMS?

    No. The BAT548110620 requires a compatible Lynx Smart BMS NG, sold separately, to supervise and protect the battery bank.

    Can multiple batteries be connected?

    Yes. One BMS supports up to 25 batteries, provided the installation, cabling and system limits are observed.

    Is it suitable for residential solar storage?

    Yes, when the installation operates at 48 V and the inverter/charger, BMS, protection and cabling are compatible with its electrical ratings.

    BAT548110620
