INNPO 51.2V 100Ah LiFePO4 Battery for 48V Golf Carts

INNPO 51.2V 100Ah LiFePO4 Battery for 48V Golf Carts

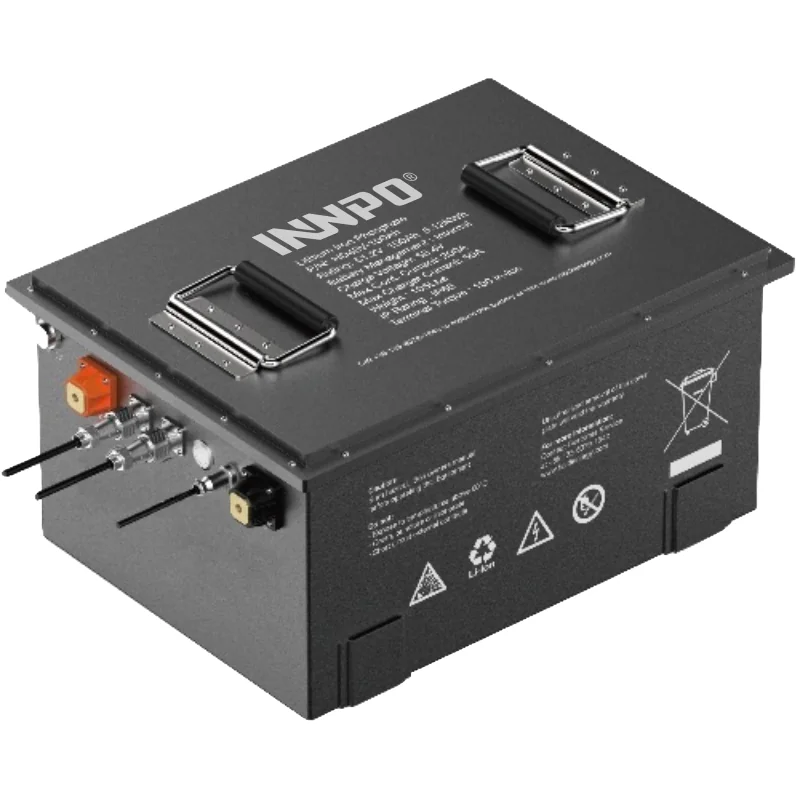

The INNPO INPGF51.2-100 LiFePO4 lithium battery combines 51.2V and 100Ah, equivalent to 5120Wh nominal energy. It is intended for electric golf carts and compatible 48V system conversions. Charger, LCD display and Bluetooth monitoring are included. Compatibility depends on the complete vehicle system, not voltage alone.

48V and 51.2V: what they mean when choosing a golf cart battery

48V is the usual designation of the cart’s electrical system. This LiFePO4 model has a nominal voltage of 51.2V. Before replacing a lead-acid, AGM or GEL bank, check the controller’s accepted voltage range, charging system and connections. A shared 48V designation does not make it a universal replacement.

Benefits for everyday golf cart use

Energy for planning your route

The nominal 5.12kWh helps size your energy reserve. Range depends on terrain, passengers, speed, accessories, temperature and losses. A fixed distance cannot be promised without a representative vehicle test.

Charger and display included

The kit includes a charger and LCD display. Check the vehicle connector, mounting, wiring and protection devices before installation. Included components do not mean every cart can be connected without adaptations.

Bluetooth BMS monitoring

Bluetooth lets you view data transmitted by the BMS using a compatible application. The connection is local; it does not provide internet remote control or allow battery protection settings to be changed.

Less electrolyte maintenance

LiFePO4 does not need electrolyte topping up like a flooded lead-acid battery. Mounting, connections and wiring still require inspection. Service life depends on use and charging and discharging conditions.

Installation and compatibility checks

• Controller: voltage range, continuous demand and current peaks.
• Space: 400 × 300 × 240 mm, plus clearance for cables and connection access.
• Connections: M8 terminals, polarity, wiring, fuses and mounting.
• Charging: a suitable profile for this model and correct connection of the included charger.
• Regenerative braking: confirm system limits where fitted.

Do not connect batteries in series or parallel without confirming this model’s limits. Do not assume compatibility with a solar inverter or industrial equipment simply because nominal voltage matches. Send us the equipment details before purchase if installation needs checking.

Technical specifications

Frequently asked questions before purchase

Can it replace six 8V or four 12V batteries?

It may be an alternative for a compatible nominal 48V bank. Check the controller, current demand, dimensions, mounting, connections and charging; adding the original battery voltages is not enough.

What range will my golf cart achieve?

There is no universal figure. Relate the nominal 5120Wh to actual consumption, terrain, vehicle load and required reserve. Our team can help assess these details.

Can I keep the original charger?

Do not assume so. A charger is included; use the previous charger only if its profile and connection are explicitly approved for this battery.

What is included?

The listing includes the battery, charger and LCD display, with built-in Bluetooth. Ask our team about the specific connectors and accessories supplied before preparing installation.

Is it suitable for Club Car, Yamaha or EZGO?

Vehicle brand alone does not establish compatibility. Provide the model, year, controller and photographs of the battery bank and connections for a case-specific check.

Applications and system selection

Prioritise this model for compatible 48V electric golf carts. For utility vehicles, industrial equipment or solar storage, check electrical and integration requirements beforehand. It is not a 12V battery for a golf bag trolley.
