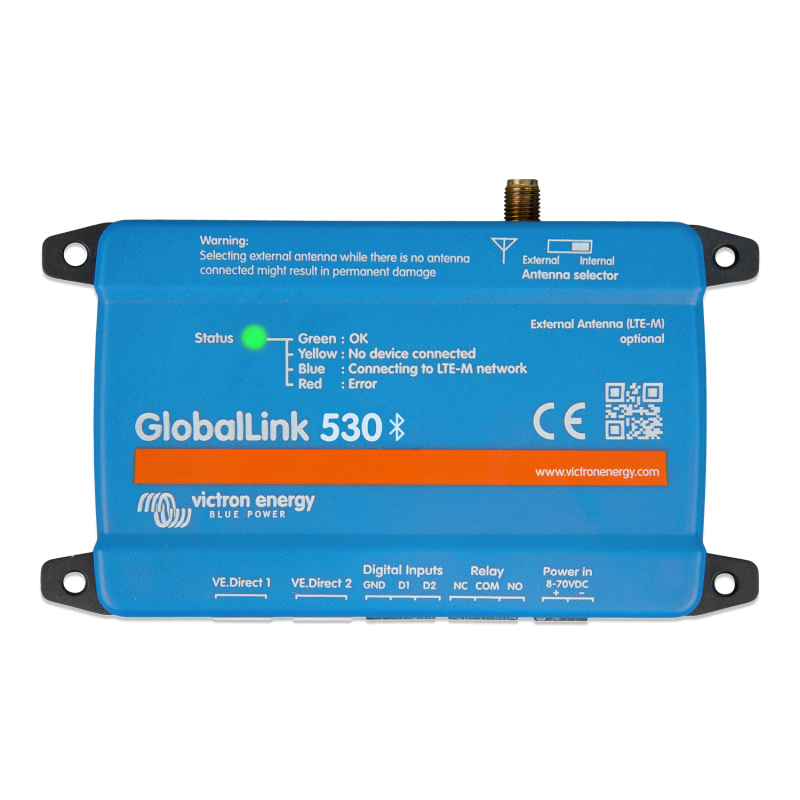

Victron GlobalLink 530 4G LTE | VRM Remote Monitoring
€198.25
Tax included
Victron GlobalLink 530 ASS030543030: monitor compatible Victron equipment through VRM over 4G LTE Cat 1, with 2G fallback where available. Pre-installed 1NCE SIM with five years of connectivity. Two VE.Direct ports and Bluetooth for supported Smart devices. 8–70 V DC; 123 × 67 × 23 mm.
EAN/GTIN: 8719076063025
Victron GlobalLink 530: 4G remote monitoring for your energy system
The GlobalLink 530 (ASS030543030) connects compatible Victron equipment to the VRM portal without relying on local Wi-Fi. Check battery state of charge, solar harvest, historical data and alerts at a remote solar site, campervan, motorhome, boat or telecommunications installation. A pre-installed 1NCE SIM provides five years of prepaid connectivity; it can be extended or replaced with a suitable SIM.
Choose the right mobile network
The 530 uses 4G LTE Cat 1 and can fall back to 2G where that service still exists. Unlike the GlobalLink 520, it does not require LTE-M service. Check coverage for the included SIM at the actual installation site before ordering. The 530 is not certified for US mobile networks.
Connections and monitoring
- Two isolated VE.Direct ports for supported equipment such as SmartSolar MPPT controllers, BMV/SmartShunt monitors, Smart IP43 chargers and Orion XS.
- Bluetooth Low Energy for up to ten compatible Victron Smart devices and RuuviTag sensors, subject to device and firmware compatibility.
- Two digital inputs and one NO/NC relay for supported alarm and switching functions.
- VRM data normally updates every 15 minutes. GlobalLink does not replace every advanced function of a GX communication centre.
Specifications and box contents
Supply: 8–70 V DC; dimensions: 123 × 67 × 23 mm; wall mounting; operating temperature: −20 to +50 °C. Internal cellular antenna and SMA socket for an optional external antenna. Relay rating: 2 A at 30 V DC or 0.5 A at 125 V AC. Included: GlobalLink 530, 1.5 m fused power cable and two plug-in terminal blocks. VE.Direct cables, mounting screws and external antenna are not included.
Explore Victron Energy products and verify equipment compatibility in the official manual.
