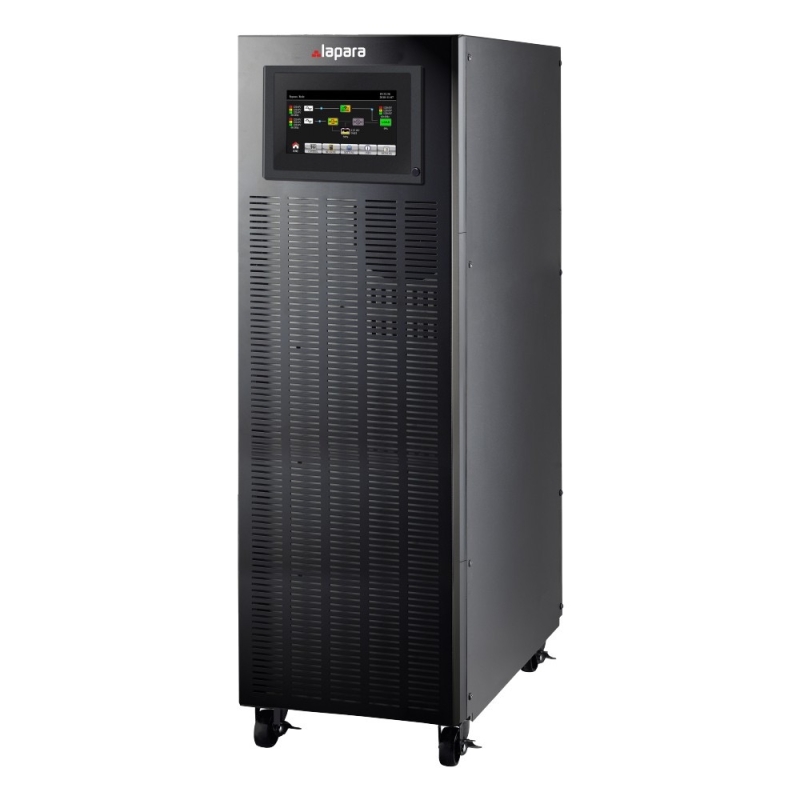

Sai Lapara online three-phase LA-ON31 20000VA

LA-ON3113-20K-V.10 · three-phase online double-conversion UPS · 20KVA / 20KW · Lapara

The LA-ON3113-20K-V.10 is a three-phase online double-conversion UPS designed to protect connected equipment and provide stable power. This page brings together the essential information for comparing power, technology, connections and format before purchase.

Installation benefits

• VFI double conversion with pure sine-wave output and zero transfer time to battery.
• Power stated in both VA and W for accurate sizing.
• Clearly identified format and connections for compatibility checks.

Recommended applications

Computers, workstations, networks, telecommunications, CCTV and electronic equipment compatible with its power rating and connections.

Technical specifications

• Capacity: 20KVA / 20KW
• Input power factor: ≧ 0,99 al 100% de carga
• Output voltage: 360/380/400/415 VAC (Ph-Ph); 208*/220/230/240 VAC (Ph-N)
• Transfer time: 0 ms
• Transfer time: 0 ms (Cuando falla el bloqueo de fase, se produce una interrupción de <4 ms del inversor al bypass)
• Transfer time: <10 ms
• Number of batteries: (20+20) units
• Reference runtime: According to the application
• Reference runtime: 32 ~ 40 (adjustable)
• Reference runtime: 1,0~12,0 A ± 10% (adjustable)
• Reference runtime: +/-13,65 VDC * N ± 1% (N = 16~20)
• Net weight: 141
• Reference runtime: 626 x 250 x 826
• Reference runtime: 45 (without batteries)

Compatibility and operating limits

VA rating does not replace usable power in watts. Check total consumption, start-up peaks and a suitable safety margin. Runtime is indicative and varies with load, temperature and battery condition.

Frequently asked questions

How do I know whether this unit is suitable?

Add up the actual wattage of the connected equipment, allow for start-up peaks and keep a safety margin. Also check the type and number of outputs.

Is the runtime always the same?

No. Runtime depends on the connected load, temperature, battery age and battery condition.

What to check before buying

• Continuous power and start-up peaks.
• Type and number of output sockets.
• Required runtime and battery configuration.
• Dimensions, communications and installation compatibility.
