Victron Energy 175W-12V Poly 1485x668x30mm 4a (SPP041751200)
€86.18
Tax included
Victron Energy 175W-12V Poly 1485x668x30mm 4a (SPP041751200). Original Victron Energy product identified by its manufacturer reference. Suitable for electrical, solar, marine and mobile systems when its specifications match the installation. SPP041751200.
EAN/GTIN: 8719076040545

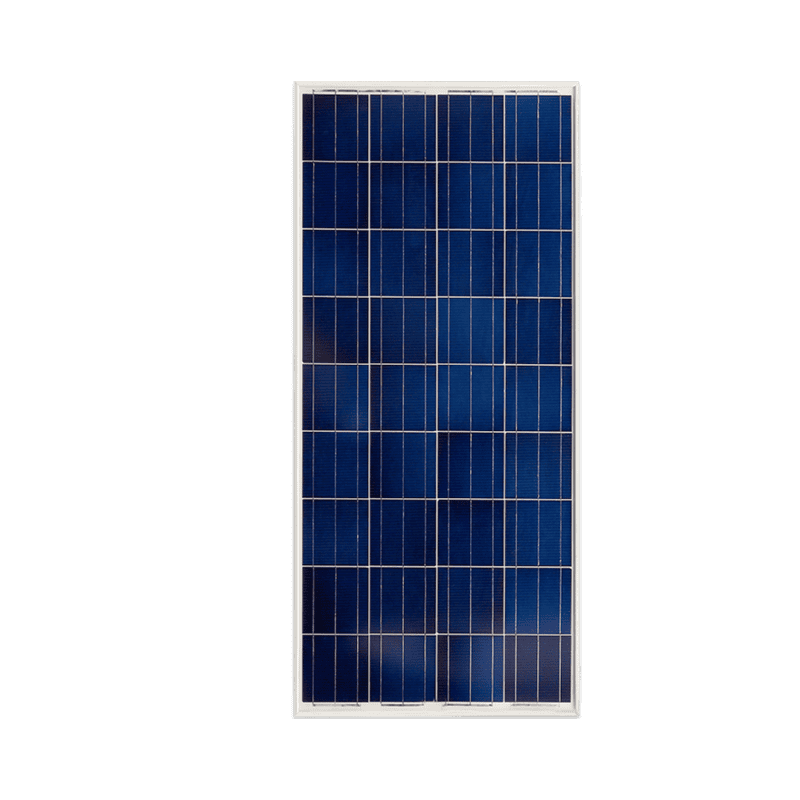

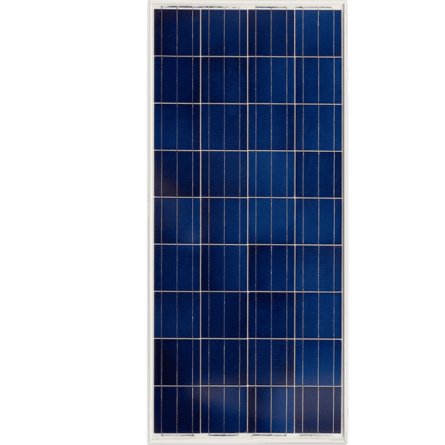

Victron 175W 12V polycrystalline solar panel
The Victron BlueSolar 175W polycrystalline panel (SPP041751200) is a 36-cell module for nominal 12V photovoltaic systems. Its narrow 1485 × 668mm footprint suits motorhomes, boats, off-grid homes and other installations where available mounting space influences panel choice.
It delivers 175W nominal power, with 18.3V and 9.56A at maximum power. Good low-light response, high-transmission tempered glass, EVA encapsulation and bypass diodes support dependable energy production and mechanical durability.
Main features
- BlueSolar polycrystalline technology.
- 36 cells connected in series.
- Aluminium frame and high-transmission tempered glass.
- Sealed junction box and 900mm leads with MC4 connectors.
- Suitable for PWM or MPPT controllers that match its electrical limits.
Technical specification
| Part number | SPP041751200 |
|---|---|
| Nominal power | 175W |
| Maximum-power voltage (Vmp) | 18.3V |
| Maximum-power current (Imp) | 9.56A |
| Open-circuit voltage (Voc) | 21.9V |
| Short-circuit current (Isc) | 10.24A |
| Dimensions | 1485 × 668 × 30mm |
| Net weight | 12kg |
| Operating temperature | -40°C to +85°C |
Compatibility and sizing
Before ordering, check the controller voltage and current limits, series/parallel arrangement and mounting area. The 12V description refers to nominal system voltage; the panel operates at 18.3V at maximum power. Browse our solar panels, solar charge controllers, solar batteries and the full Victron Energy range.
Frequently asked questions
Can it be connected directly to a battery? No. Use a correctly sized solar charge controller and the appropriate electrical protection.
Which controller is required? That depends on bank voltage, panel quantity and wiring. Compare the array Voc and Isc with the controller input limits.
SPP041751200
