    Victron Energy Inverter 12/250 230V VE.Direct IEC (PIN121251100)

    €78.55
    Tax included

    Victron Energy

    Victron Energy Inverter 12/250 230V VE.Direct IEC (PIN121251100). Original Victron Energy product identified by its manufacturer reference. Suitable for electrical, solar, marine and mobile systems when its specifications match the installation. PIN121251100.

    EAN/GTIN: 8719076047117

    Quantity

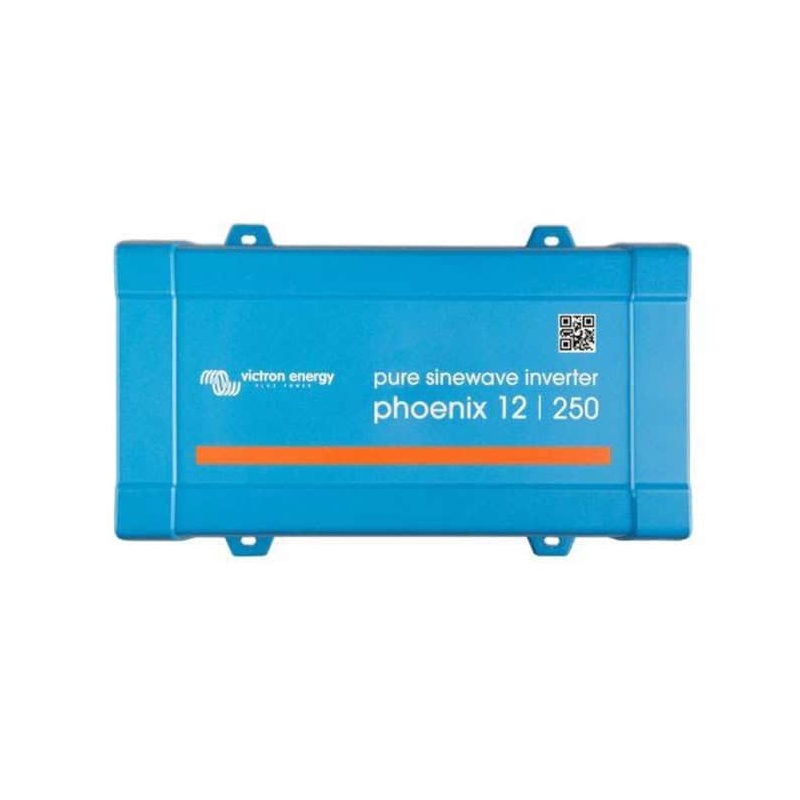

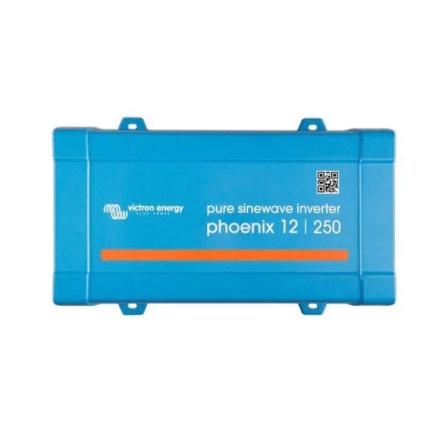

    Victron Phoenix 12/250 230V VE.Direct IEC inverter

    The Victron Phoenix 12/250 VE.Direct IEC (PIN121251100) converts energy from a 12V battery into 230V pure sine-wave AC. It suits off-grid solar systems, motorhomes, boats and mobile installations powering electronics, lighting or tools within its rated limits.

    It provides 250W continuously at 25°C, 200W at 40°C and a 400W peak for 15 seconds. VE.Direct enables configuration and monitoring through VictronConnect with the appropriate interface or connection to a GX device. This version has an IEC-320 outlet and does not include a battery charger or automatic transfer switch.

    Main features

    • 12V battery input and 230V AC output.
    • Pure sine wave for sensitive equipment.
    • Configurable ECO mode with low standby consumption.
    • VE.Direct port and remote on/off terminal.
    • Protection against short circuit, overload, high temperature and incorrect battery voltage.

    Technical specification

    Part numberPIN121251100
    Continuous power at 25°C250W
    Continuous power at 40°C200W
    Peak power400W for 2s
    AC output230V ±3%; configurable 50/60Hz
    DC input range9.2–17V
    Maximum efficiency84%
    No-load / ECO consumption5W / 1W
    OutletIEC-320
    ProtectionIP21
    Dimensions86 × 165 × 260mm
    Weight2.7kg

    Compatibility and selection

    Check the continuous requirement and startup surge of the appliance. To use full output, Victron recommends 4mm² cable up to 1.5m or 6mm² between 1.5 and 3m, plus a suitably sized battery. Browse our pure sine-wave inverters, solar batteries, monitoring equipment and the full Victron Energy range.

    Frequently asked questions

    Does it have built-in Bluetooth? No. Bluetooth requires the VE.Direct Bluetooth Smart dongle; alternatively use VE.Direct to USB or a compatible GX device.

    Does it charge the battery from mains power? No. This is an inverter, not an inverter/charger. Choose a unit with charging and transfer functions if those are required.
