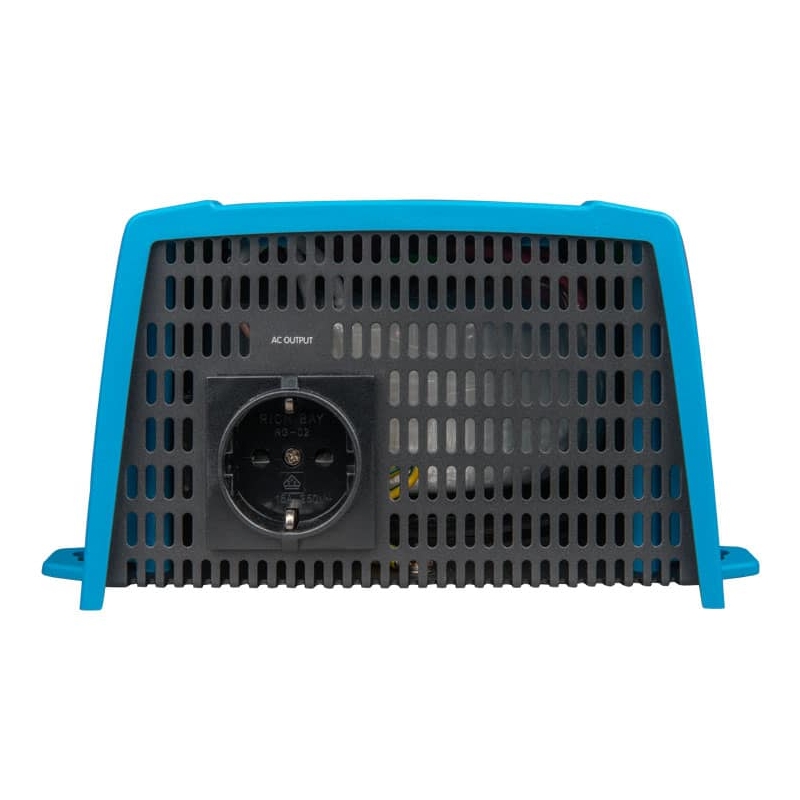

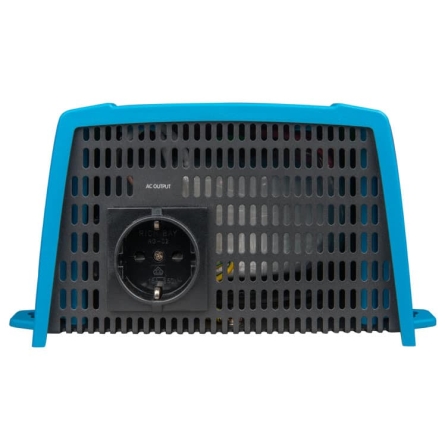

Victron Energy Inverter 12/1200 230V VE.Direct IEC (PIN122121110)
€232.61
Tax included
Victron Energy Inverter 12/1200 230V VE.Direct IEC (PIN122121110). Original Victron Energy product identified by its manufacturer reference. Suitable for electrical, solar, marine and mobile systems when its specifications match the installation. PIN122121110.
EAN/GTIN: 8719076066293
Victron Phoenix 12/1200 230V VE.Direct IEC inverter
The Victron Phoenix 12/1200 VE.Direct IEC (PIN122121110) converts energy from a 12V battery into 230V pure sine-wave AC. It suits off-grid solar systems, motorhomes, boats and mobile installations powering electronics, lighting or tools within its rated limits.
It provides 1150W continuously at 25°C, 1000W at 40°C and a 1600W peak for 15 seconds. VE.Direct enables configuration and monitoring through VictronConnect with the appropriate interface or connection to a GX device. This version has an IEC-320 outlet and does not include a battery charger or automatic transfer switch.
Main features
- 12V battery input and 230V AC output.
- Pure sine wave for sensitive equipment.
- Configurable ECO mode with low standby consumption.
- VE.Direct port and remote on/off terminal.
- Protection against short circuit, overload, high temperature and incorrect battery voltage.
Technical specification
| Part number | PIN122121110 |
|---|---|
| Continuous power at 25°C | 1150W |
| Continuous power at 40°C | 1000W |
| Peak power | 1600W for 15s |
| AC output | 230V ±3%; configurable 50/60Hz |
| DC input range | 9.2–17V |
| Maximum efficiency | 91% |
| No-load / ECO consumption | 11W / 1W |
| Outlet | IEC-320 |
| Protection | IP21 |
| Dimensions | 117 × 231 × 374mm |
| Weight | 7.2kg |
Compatibility and selection
Check the continuous requirement and startup surge of the appliance. To use full output, Victron recommends 25mm² cable up to 1.5m or 35mm² between 1.5 and 3m, plus a suitably sized battery. Browse our pure sine-wave inverters, solar batteries, monitoring equipment and the full Victron Energy range.
Frequently asked questions
Does it have built-in Bluetooth? No. Bluetooth requires the VE.Direct Bluetooth Smart dongle; alternatively use VE.Direct to USB or a compatible GX device.
Does it charge the battery from mains power? No. This is an inverter, not an inverter/charger. Choose a unit with charging and transfer functions if those are required.
