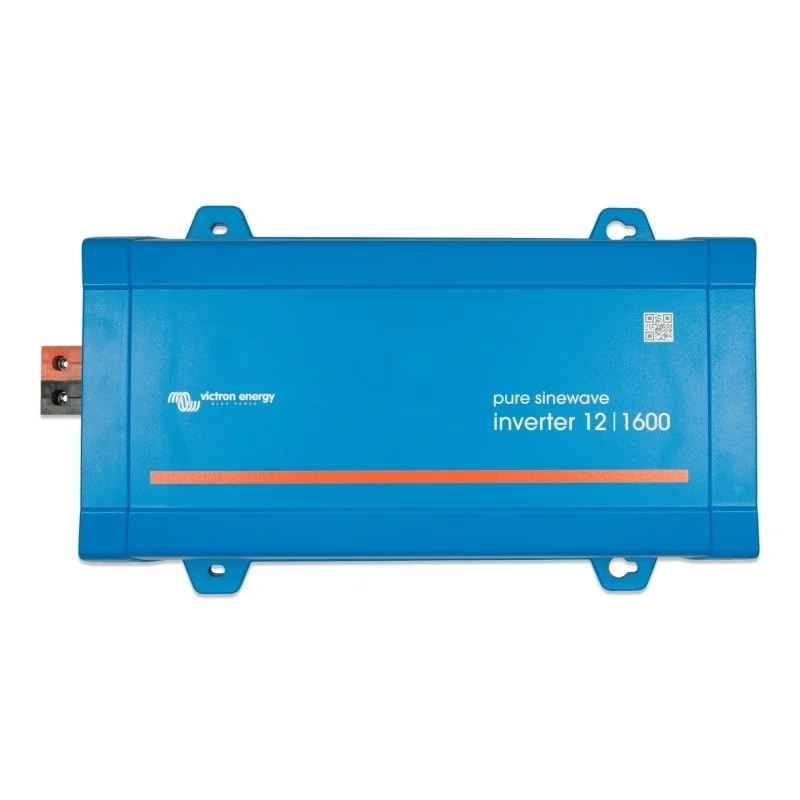

    Victron Phoenix Inverter 12/1600 VE.Direct 230V SCHUKO

    €267.67
    Tax included

    Victron Energy Logo

    Measures: 117 x 231 x 395 mm

    EAN/GTIN: 8719076066347

    Quantity

    Victron Phoenix Inverter 12/1600 VE.Direct 230V SCHUKO

    The solar inverter Phoenix Inverter 12/1600 VE.Direct 230V SCHUKO belongs to Victron Energy´s Phoenix Inverter VE.Direct product line.

    The name of this inverter indicates that the voltage is 12V and the continuum power (non-linear) at 25°C is 1600VA. The AC power output socket is SCHUKO with a 230V output voltage and VE.Direct is the interface of the communications port.

    Specifications Victron Phoenix 12/1600

    Continuum power at 25°C (1)1600VA
    Continuum power at 25°C / 40°C1500 / 1350W
    Peak power2100W
    Output AC voltage / frequency (adjustable)230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
    Input voltage range9,2 - 17V
    DC low shut down (adjustable)9,3V
    Dynamic (load dependent) DC low shut down (fully configurable)Dynamic cut-off
    DC low restart and alarm (adjustable)10,9V
    Battery charged detect (adjustable)14,0V
    Max. efficiency91%
    Zero-load power7W
    Default zero-load power in ECO mode (default retry interval: 2,5 s, adjustable)1W
    ECO mode stop and start power settingAdjustable
    Protection *a - f
    Operating temperature range40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C
    Humidity (non-condensing)max 95%

    * Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

    Victron Accesories (not included in the product)

    • Victron VE.Direct to USB interface cable
    • Victron VE.Direct Bluetooth Smart Dongle
    • Victron BMV Battery Monitor

    Product Warranty

    Standard warranty of 5 years, extendable to 10 years with an additional 10% of the initial investment. Contact us for more information.

    PIN122161200

    Data sheet

    Large (mm)
    231
    Width (mm)
    395
    Height (mm)
    117
    Weight (kg)
    8
    Bluetooth
    No
