Victron Energy Orion IP67 24/12-5A (60W) (ORI241205260)
€23.45
Tax included
Victron Energy Orion IP67 24/12-5A (60W) (ORI241205260). Original Victron Energy product identified by its manufacturer reference. Suitable for electrical, solar, marine and mobile systems when its specifications match the installation. ORI241205260.
EAN/GTIN: 8719076048428

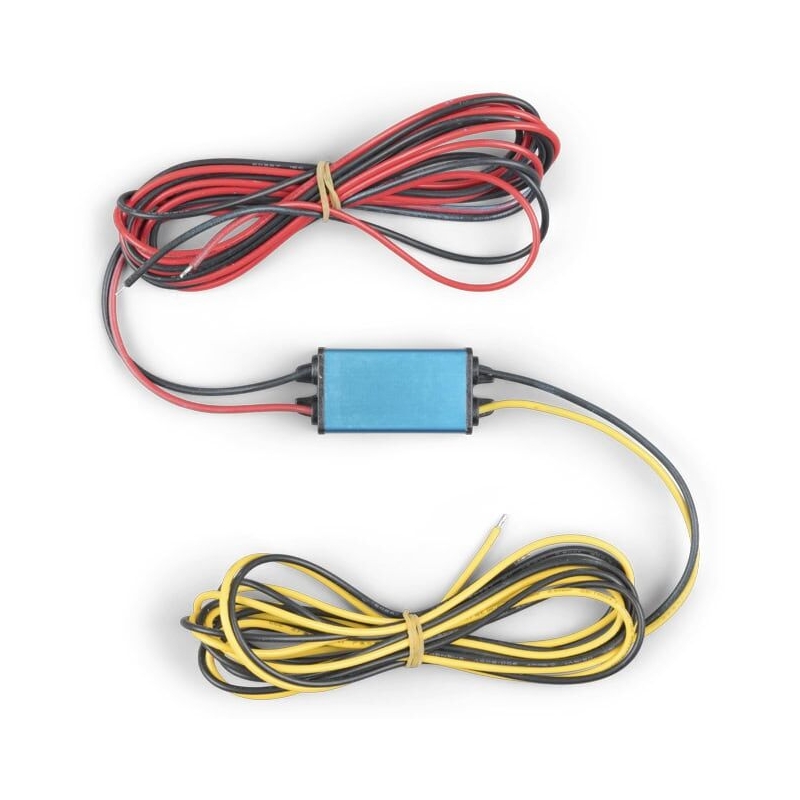

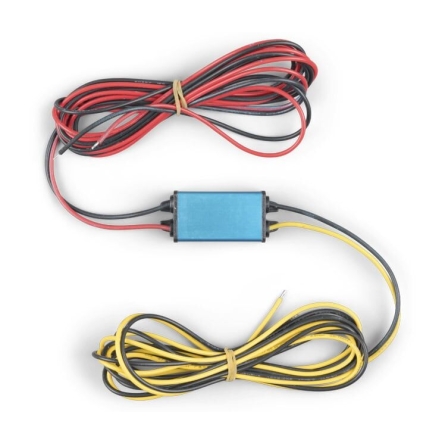

Victron Orion IP67 24/12-5A 60W DC-DC converter
The Victron Orion IP67 24/12-5A (ORI241205260) converts a nominal 24V supply into a stable 12V output for auxiliary equipment. It delivers up to 5A continuously, or 60W, and its encapsulated electronics resist water, oil, dirt, shock and ignition hazards.
This is a non-isolated converter, so input and output share a negative connection. Its 1.8m input and output leads reduce the need for joints in exposed areas. It is not a battery charger and has no Bluetooth, VE.Direct port or app adjustment.
Key features
- 24V to 12V DC-DC conversion.
- Maximum continuous output: 5A / 60W.
- IP67 protection with resin-encapsulated electronics.
- Wide 15–40V DC input range.
- Undervoltage, overload, short-circuit and thermal protection.
- 1.8m input and output cables included.
Technical specifications
| Part number | ORI241205260 |
|---|---|
| Model | Orion IP67 24/12-5A |
| Input range | 15–40V DC |
| Undervoltage shutdown / restart | 13V / 14V |
| Output | 12V ±3% |
| Continuous current | 5A |
| Power | 60W |
| Efficiency | 93% |
| No-load current | 1mA at 24V |
| Galvanic isolation | No |
| Protection rating | IP67 |
| Operating temperature | -40 to +70°C; full output to 40°C |
| Dimensions | 25 × 43 × 20mm |
| Weight | 50g |
Applications and compatibility
Suitable for powering 12V electronics from 24V vehicles, boats and battery systems when continuous consumption does not exceed 5A and fuses are installed close to the source. Browse our DC accessories, fuses, solar batteries and the full Victron Energy range.
Frequently asked questions
Can it charge a 12V battery? No. Its fixed 12V output is intended to power loads and does not provide a charging profile.
Are input and output isolated? No. This is a non-isolated model with a common negative.
