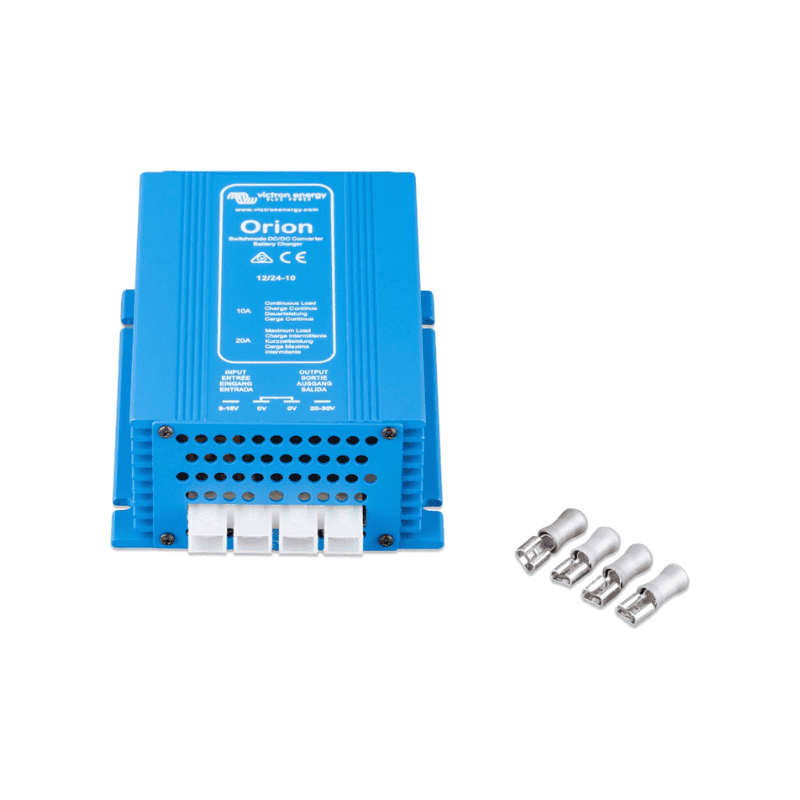

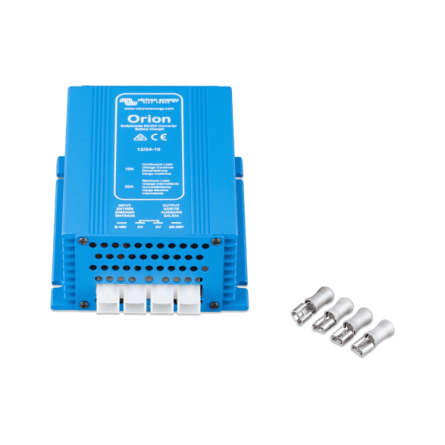

Victron Energy Orion 12/24-10 DC-DC converter IP20 (ORI122410020)
€57.32
Tax included
Victron Energy Orion 12/24-10 DC-DC converter IP20 (ORI122410020). Original Victron Energy product identified by its manufacturer reference. Suitable for electrical, solar, marine and mobile systems when its specifications match the installation. ORI122410020.
EAN/GTIN: 8719076022749
Victron Orion 12/24-10A DC-DC converter IP20
The Victron Orion 12/24-10A (ORI122410020) is a non-isolated DC-DC converter that steps a nominal 12V supply up to an adjustable output for 24V systems. It can power 24V equipment or buffer-charge a 24V auxiliary battery from a 12V source where both systems share a common negative.
Output is adjustable from 20 to 30V by potentiometer and factory-set to 26.4V. It supplies 10A continuously and up to 20A maximum; as many as five units can be connected in parallel for additional current. There is no Bluetooth, VE.Direct or galvanic isolation.
Main features
- 9–18V input and adjustable 20–30V output.
- Factory output setting of 26.4V.
- 10A continuous and up to 20A maximum.
- 95% efficiency and less than 15mA no-load current.
- 6.3mm Faston connections and passive cooling.
Technical specification
| Part number | ORI122410020 |
|---|---|
| Input range | 9–18V |
| Undervoltage shutdown / restart | 8V / 10V |
| Output | 20–30V; factory-set 26.4V |
| Continuous / maximum current | 10A / 20A |
| Efficiency | 95% |
| No-load current | <15mA |
| Galvanic isolation | No |
| Operating temperature | -20°C to +55°C |
| DC connection | 6.3mm Faston |
| Dimensions | 45 × 90 × 125mm |
| Weight | 0.4kg |
Compatibility and selection
Confirm that both systems share a negative, input remains within 9–18V and the load or battery accepts the selected voltage. As a non-isolated unit, it cannot replace a converter requiring galvanic separation. Browse our DC-DC converters, batteries, chargers and power supplies and the full Victron Energy range.
Frequently asked questions
Can it be used for buffer charging? Yes, when its adjustable output is set correctly for the battery.
Does it have remote on/off? No. This part number has no remote on/off terminal.
