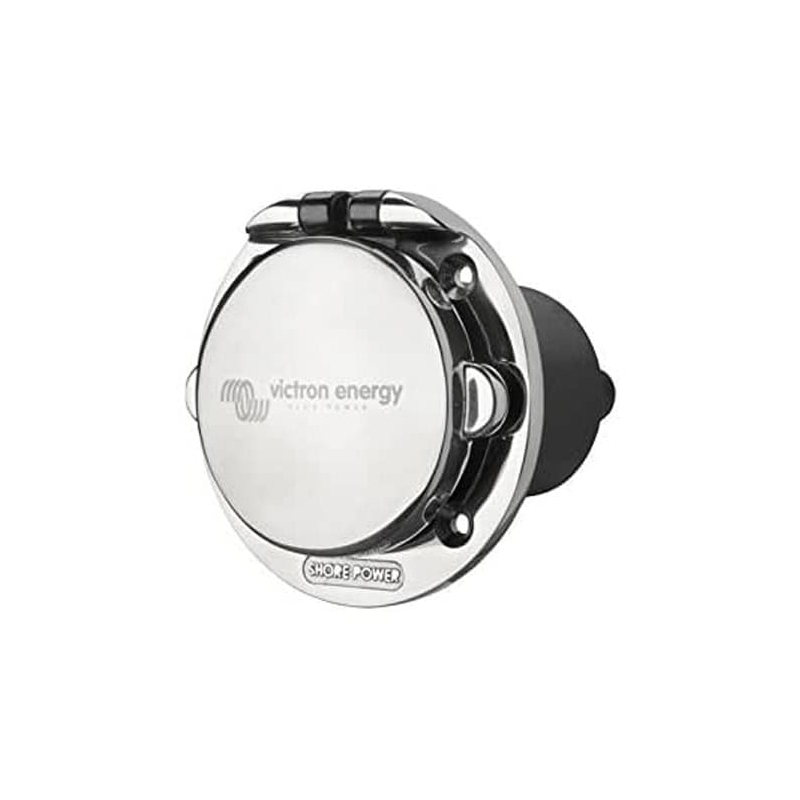

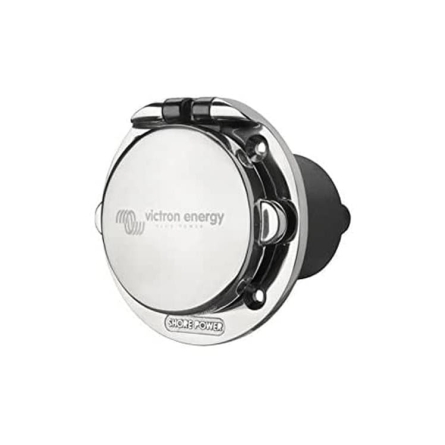

Victron Energy Power Inlet stainless with cover 16A/250Vac (2p/3w) (SHP301602000)
€84.84
Tax included
Victron Energy Power Inlet stainless with cover 16A/250Vac (2p/3w) (SHP301602000). Original Victron Energy product identified by its manufacturer reference. Suitable for electrical, solar, marine and mobile systems when its specifications match the installation. SHP301602000.
EAN/GTIN: 8719076007463
Victron 16A 250V stainless-steel shore power inlet
The Victron 16A/250V shore power inlet (SHP301602000) is a fixed inlet for connecting an external AC supply to a boat, camper or mobile installation. Its solid cast 316 stainless-steel cover protects the connection point and provides a durable finish for exposed environments.
It follows IEC 60309 with a 2P+E configuration and provides IP56 protection when correctly installed and closed. Before ordering, check current, voltage, compatible plug type, mounting requirements and the electrical rules for the installation.
Key features
- Current rating: 16A.
- Voltage rating: 250V AC.
- IEC 60309, 2P+E connection.
- Solid cast 316 stainless-steel cover.
- PA6 body and nickel-plated brass pins.
- IP56 protection and CE certification.
Technical specifications
| Part number | SHP301602000 |
|---|---|
| Type | Shore power inlet |
| Current | 16A |
| Voltage | 250V AC |
| Standard | IEC 60309, 2P+E |
| Cover | Solid cast 316 stainless steel |
| Body | PA6 |
| Pins | Nickel-plated brass |
| Protection | IP56 |
| Weight | 0.34kg |
| Certification | CE |
Compatibility and installation
A compatible 16A/250V shore lead and plug are required. The installation must include suitable cable size, RCD and over-current protection, protective earth and weatherproof mounting, and should be completed by a qualified person. Browse our cables, accessories, chargers and power supplies and the complete Victron Energy range.
Frequently asked questions
Is the shore lead included? No. This part is the fixed inlet with cover; the lead and mating plug are selected separately.
Can it be installed outdoors? It provides IP56 protection when correctly mounted and closed, but sealing, orientation and local electrical regulations must be observed.
