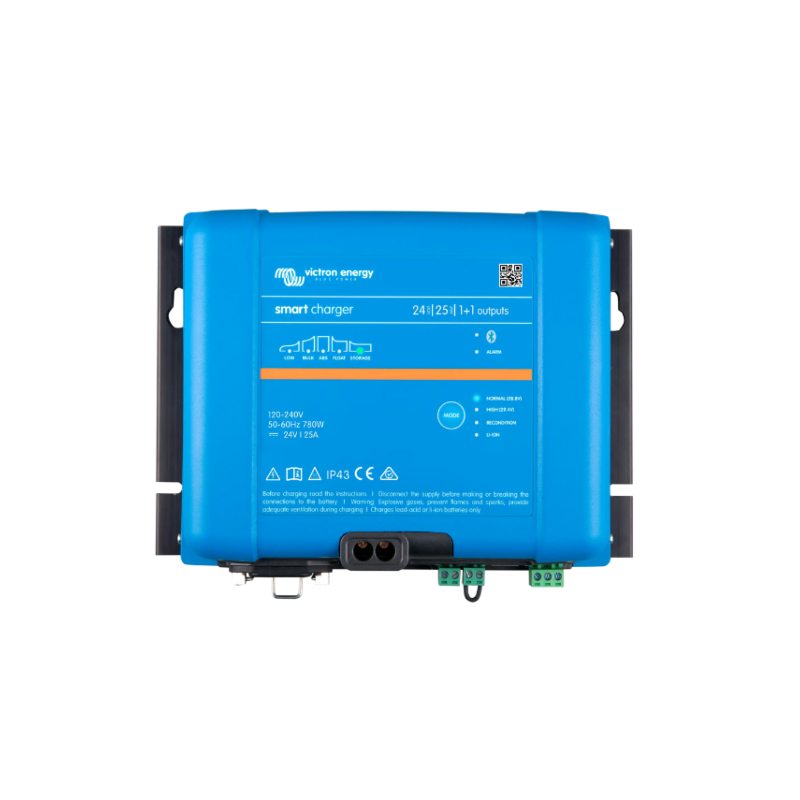

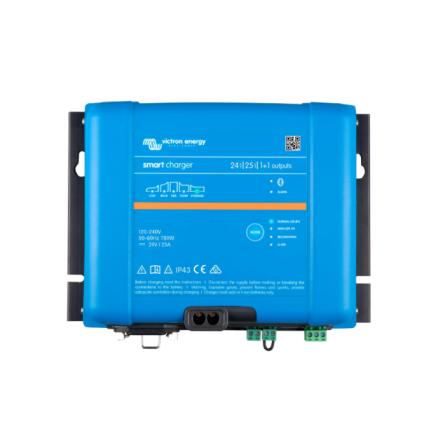

    Victron Smart IP43 24V 25A (1+1) 120-240V Charger

    €354.60
    Tax included

    Victron Energy

    Victron Smart IP43 24V 25A (1+1), part number PSC242551095. Professional charger for a 24 V service bank, with a 25 A main output and an auxiliary output of up to 4 A for maintaining a starter battery. Bluetooth, VE.Direct and universal 120-240 V input are built in.

    Charging technologies: Flooded lead-acid, AGM, gel and LiFePO4; select the appropriate charging profile.

    EAN/GTIN: 8719076053545

    Quantity

    Victron Smart IP43 24V 25A (1+1) 120-240V (PSC242551095)

    The Victron Smart IP43 24/25 (1+1) is a professional charger for 24 V systems. The main output supplies up to 25 A to the service bank, while the second output is limited to 4 A for maintaining a starter battery.

    Compatible battery technologies

    Supports the following rechargeable battery technologies, provided that the bank voltage matches the charger output and the battery capacity and permitted charging current are respected.

    TechnologyCompatibility and settings
    Conventional flooded lead-acid / WETCompatible with the lead-acid programme specified by the battery manufacturer.
    AGM / VRLACompatible. Use the absorption and float voltages recommended for the battery; AGM batteries do not all require the same settings.
    Gel / VRLACompatible with the correct gel profile and voltage limits. Avoid overvoltage and reconditioning unless authorised by the battery manufacturer.
    LiFePO4 lithiumCompatible with the lithium/LiFePO4 profile and a suitable BMS. Do not use lead-acid equalisation or reconditioning.

    Select Normal, High or Li-ion using the controls available on this model or VictronConnect. AGM and gel are not universal programmes: the final settings must match the battery datasheet.

    Not intended for non-rechargeable cells, NiMH or Ni-Cd batteries. Chemical compatibility does not mean that every capacity or voltage is suitable. For LiFePO4, also observe charging temperature limits and BMS protections.

    This universal-input version replaces the former 230 V PSC242551085. It retains Bluetooth and VE.Direct connectivity, while supporting 120-240 V supplies and reaching up to 96% efficiency at 230 V.

    Main features

    • 25 A main charging output for 24 V batteries.
    • Auxiliary starter-battery output, 4 A maximum.
    • Integrated Bluetooth for setup and monitoring with VictronConnect.
    • VE.Direct port for wired communication and GX integration.
    • Adaptive six-stage charging algorithm.
    • Configurable profiles for lead-acid, AGM, GEL and LiFePO₄ batteries.
    • Power-supply mode, programmable relay and remote on/off.
    • Reverse-polarity, short-circuit and over-temperature protection.

    Technical data

    Part numberPSC242551095
    System voltage24 V
    AC input85-250 VAC; full power from 100 VAC
    DC input90-375 VDC
    Frequency45-65 Hz
    Main charge current25 A
    Low-current mode12.5 A
    Starter-battery output4 A maximum
    Maximum efficiency96% at 230 V / 94% at 120 V
    CommunicationBluetooth and VE.Direct
    Protection ratingIP43 electronics / IP22 connection area
    Dimensions180 × 249 × 116 mm
    Net weight2.7 kg

    Recommended applications

    • Boats with a service bank and starter battery.
    • Motorhomes, special vehicles and 24 V auxiliary systems.
    • Off-grid and backup installations using lead-acid or lithium batteries.

    Package and compatibility

    The package contains the charger and installation and safety documentation. The country-specific AC power cable is ordered separately. Confirm that the battery bank is 24 V and that the 1+1 dual-output configuration is required.

    Frequently asked questions

    Does the second output also provide 25 A?
    No. The auxiliary output is limited to 4 A and is intended to maintain a starter battery.

    Is it compatible with LiFePO₄?
    Yes, when the correct profile is selected in VictronConnect.

    Can it connect to a Cerbo GX?
    Yes, through the appropriate VE.Direct connection.

    Is an AC power cable included?
    No. The AC cable is ordered separately.

    Complete your Victron system

    Browse our 24 V battery chargers, battery monitors and the complete Victron Energy range.
