Victron SmartSolar MPPT RS 450/100-MC4 Solar Charge Controller
€1,001.22
Tax included
48
V
V
SCC145110512 · 48 V battery · 100 A charging · 2 MPPT trackers · PV input up to 450 V · MC4 connectors · 16 A per tracker.
EAN/GTIN: 8719076062738

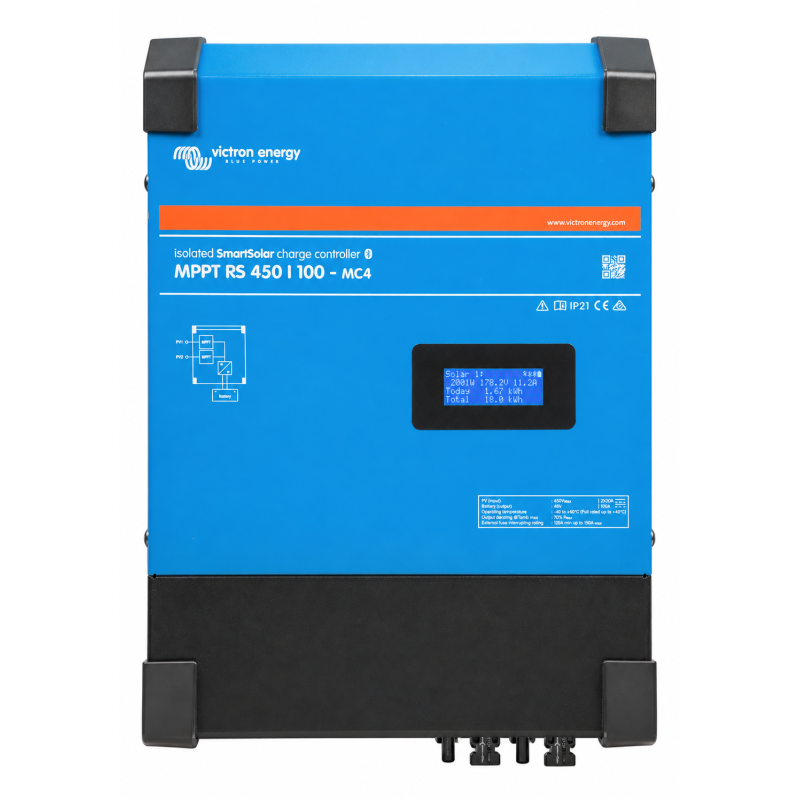

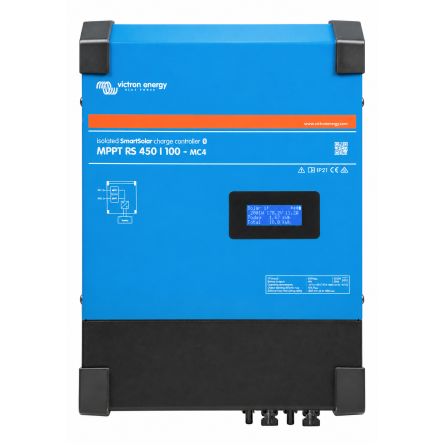

Victron SmartSolar MPPT RS 450/100-MC4 Solar Charge Controller
Victron solar charge controller for charging 48 V batteries from photovoltaic strings. Part number SCC145110512 identifies the MC4 version, with two pre-wired pairs of solar connectors, one per MPPT tracker.
Features and connections
- Two independent MPPT trackers for two photovoltaic strings.
- Up to 100 A battery charging current and 5,760 W maximum total charging power.
- Built-in Bluetooth with VictronConnect configuration; VE.Direct and VE.Can communication.
- Fan-assisted cooling. IP21 protection for indoor installation.
Key specifications
| Victron part number | SCC145110512 |
|---|---|
| Nominal battery voltage | 48 V |
| Maximum battery charging current | 100 A |
| Maximum PV open-circuit voltage | 450 V DC |
| MPPT operating range | 65–450 V DC, subject to the manual’s conditions |
| PV start-up voltage | 120 V DC |
| MPPT trackers | 2 |
| Maximum operational PV current per tracker | 16 A |
| PV connection | MC4 |
The solar input accepts up to 16 A per tracker; the 100 A rating refers to battery charging current. This MC4 version uses solar connectors rather than the screw terminals of the TR version. When replacing a TR unit, check the string current and the required connections.
SCC145110512
Data sheet
- Volts (V)
- 48
- Technology
- MPPT
- Intensity (A)
- 100
- Large (mm)
- 313
- Width (mm)
- 440
- Height (mm)
- 126
- Weight (kg)
- 8
- Bluetooth
- Yes
- Connectors
- MC4
SCC145110512 · 48 V battery · 100 A charging · 2 MPPT trackers · PV input up to 450 V · MC4 connectors · 16 A per tracker.
