    Victron Energy VE.Can to CAN-bus BMS type A Cable 1,8 m (ASS030710118)

    €17.16
    Tax included

    Victron Energy

    Victron Energy VE.Can to CAN-bus BMS type A Cable 1,8 m (ASS030710118). Original Victron Energy product identified by its manufacturer reference. Suitable for electrical, solar, marine and mobile systems when its specifications match the installation. ASS030710118.

    EAN/GTIN: 8719076071600

    Quantity

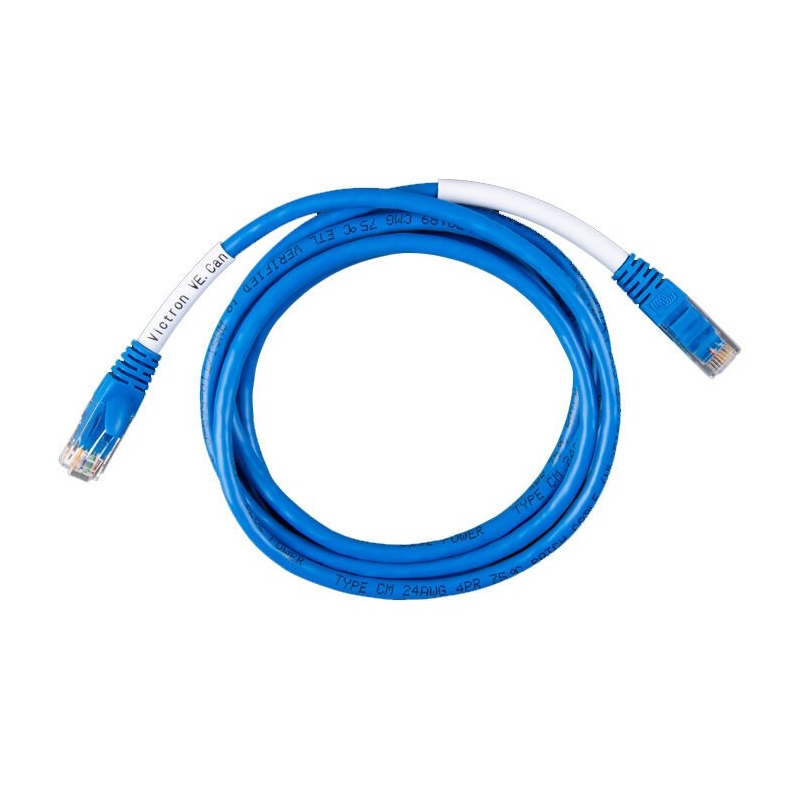

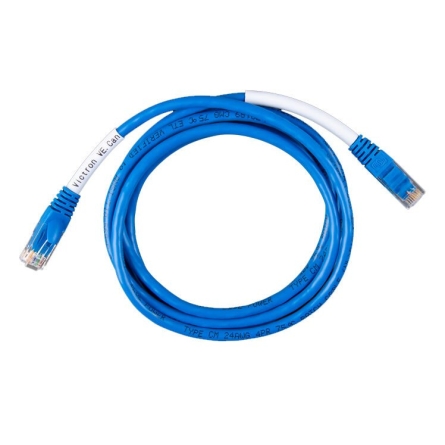

    Victron VE.Can to CAN-bus BMS type A cable 1.8 m (ASS030710118)

    The Victron VE.Can to CAN-bus BMS type A cable connects a compatible third-party CAN-bus battery to a Victron GX device. Its 1.8-metre length provides a neat link between the battery BMS and equipment such as a Cerbo GX when both battery and system are approved for this interface.

    This is not a conventional Ethernet lead and must not be replaced with a straight RJ45 cable: type A has a dedicated pinout. Connect the end labelled CAN-bus BMS to the battery and the VE.Can end to the correctly configured VE.Can or BMS-Can port on the GX device.

    Main features

    • VE.Can to CAN-bus BMS type A interface.
    • Length: 1.8 m.
    • RJ45 connectors with dedicated internal wiring.
    • Carries charge and discharge limits, state of charge, alarms and other data supplied by the BMS.
    • For compatible third-party batteries; it is not a Victron Lithium NG battery cable.

    Technical specifications

    Commercial part numberASS030710118
    TypeVE.Can to CAN-bus BMS type A
    Length1.8 m
    Victron connectionGX device VE.Can or BMS-Can port
    Battery connectionCompatible BMS CAN port
    Type A pinoutGND: 3→6; CAN-L: 8→5; CAN-H: 7→4

    Compatibility

    Victron specifies type A for BYD B-Box, Hubble Lithium via CloudLink —including AM-10+ and Blade with internal CloudLink— and selected Pylontech models such as US2000C, US3000C, UP5000 and Force-L. Compatibility may vary by product generation and firmware, so always check the current battery documentation. Models requiring type B, a standard RJ45 lead or a custom cable do not use this pinout.

    Complete the system with our electrical accessories, connection cables, battery monitors and wider Victron Energy range.

    Frequently asked questions

    Can I use a normal network cable?

    No. Although it uses RJ45 connectors, the type A pinout is specific and the wrong cable will prevent correct communication.

    Where does each end connect?

    Connect CAN-bus BMS to the battery and VE.Can to the GX device. A VE.Can port may need the 500 kbit/s CAN-bus BMS profile and the terminator specified by Victron.

    Does it work with every Pylontech battery?

    No. Some generations require type A and others type B. Check the exact battery model before ordering.
