Victron Energy Digital Multi Control 200/200A (REC020005010)

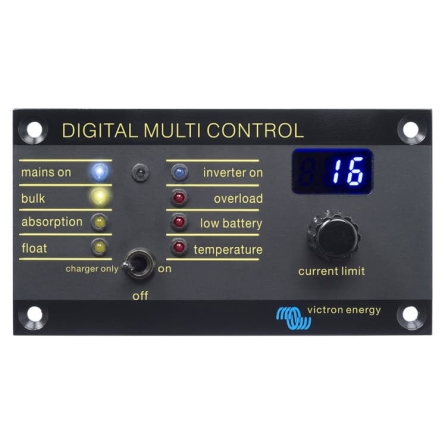

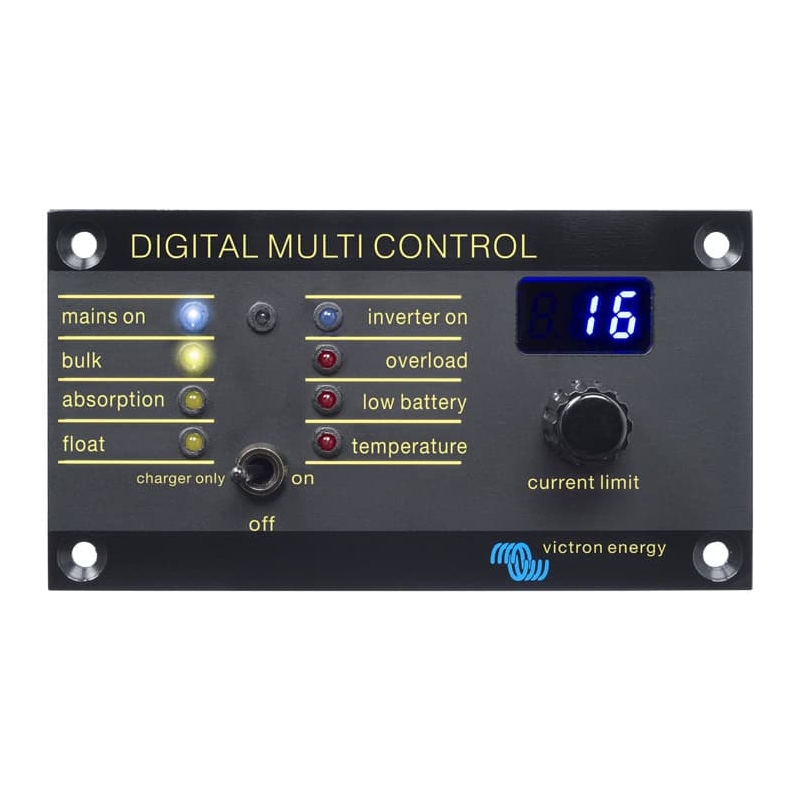

Victron Digital Multi Control 200/200A panel

The Victron Digital Multi Control 200/200A (REC020005010) provides remote monitoring and control of compatible Victron inverter/charger systems. The panel switches the system on or off, selects its operating mode and adjusts the AC input current limit to protect a shore, mains or generator supply.

It supports stand-alone, parallel, split-phase and three-phase installations. In systems with two AC sources, such as a Quattro supplied by a generator and shore power, separate limits can be managed up to 200A. LED brightness is reduced automatically at night.

Key features

• Remote inverter/charger control and charging-status indication.
• Adjustable AC input current limit up to 200A.
• Control of one or two AC sources depending on the system.
• Supports stand-alone, parallel, split-phase and three-phase configurations.
• Connects to the system with a compatible RJ45 UTP cable.

Technical specifications

Compatibility and installation

Compatible with MultiCompact, MultiPlus, MultiPlus-II, MultiPlus-II GX, Quattro, Quattro-II, EasySolar and EasySolar-II GX, plus selected legacy pre-VE.Bus units. The RJ45 UTP cable is selected separately. Browse our cables, panels and battery monitors, power equipment and the full Victron Energy range.

Frequently asked questions

Does 200A flow through the panel? No. This is the maximum AC input current-limit setting for a compatible system; the panel is a control device.

Is the RJ45 UTP cable included? No. The box contains the panel and four screws; order the cable separately in the required length.
