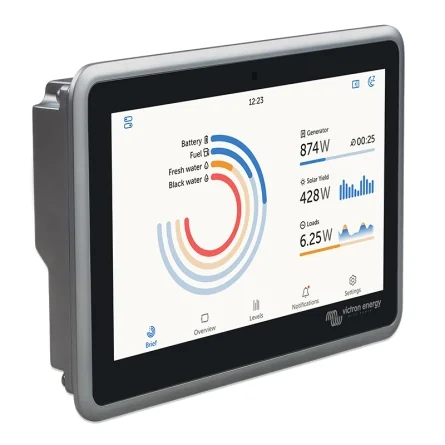

    Victron Ekrano GX Monitoring System

    €490.81
    Tax included

    Victron Energy Logo

    Measures: 124 x 187 x 29,8 mm

    EAN/GTIN: 8719076058038

    Quantity

    Victron Ekrano GX Monitoring System

    The Victron Ekrano GX is a communications hub equipped with remote monitoring capabilities. Its extensive connectivity allows for integration with any Victron system and other hardware. The Victron Remote Management (VRM) portal provides access to your system for remote control. It can also be controlled via its 7-inch touchscreen, the VictronConnect app, or through its Wi-Fi or Bluetooth access point.

    Victron Ekrano GX Features

    Power Supply Voltage8 – 70 VDC
    Power Consumption with Display On6.2W at 12V; 6.6W at 24V; 7.4W at 48V
    Power consumption with screen off2.6W at 12V; 3.0W at 24V; 3.7W at 48V
    Relay2 NO/NC; DC up to 30V DC: 3A; AC: 1A, 124 VAC
    VE.Direct Ports (Isolated)3 (maximum 25 possible VE.Direct devices)
    VE.Bus (Isolated)1 bus with 2 RJ45 sockets in parallel
    VE.Can 1Yes - Isolated
    VE.Can 2Yes - Unisolated
    EthernetYes
    WiFiYes
    Bluetooth SmartYes
    USB Host PortsYes – 2 USB-A (maximum 1.5A at 5V combined)
    Micro SD Card SlotYes – SDHC cards up to 32GB
    Resistive Fuel Tank Level Inputs3
    Fuel Tank Level Sensor Inputs temperature2
    Digital inputs2
    Height124 mm
    Width187 mm
    Depth29.8 mm
    Weight0.56 Kg

    Regulations

    • Safety: IEC 62368-1
    • EMC: EN 301489-1, EN 301489-17
    • Automotive: ECE R10-6

    Monitoring

    Monitoring for instantaneous monitoring of battery charge status, energy consumption, photovoltaic, generator, and grid energy capture, tank level checks, and temperature measurements. The input current limit of the port socket, automatic generator start/stop, and settings can be adjusted for optimization. Alerts can also be monitored, diagnostics checked, and problems resolved remotely.

    Mounting

    Optimized for flush panel or blank hole mounting. Mounting hardware included. Features an audible alarm. It has IP54 protection for the front, IP31 when installed with clamp springs, and IP21 for the rear.

    Applications

    Suitable for controlling solutions including marine, stand-alone, or backup generators, energy storage systems, emergency and recreational vehicles, among other applications.

    The Ekrano GX can be integrated into any marine network via its NMEA 2000 output support.

    Warranty

    5-year warranty.

    BPP900480100

    Data sheet

    Large (mm)
    187
    Width (mm)
    29.8
    Height (mm)
    124
    Weight (kg)
    0.56
    Bluetooth
    Yes
