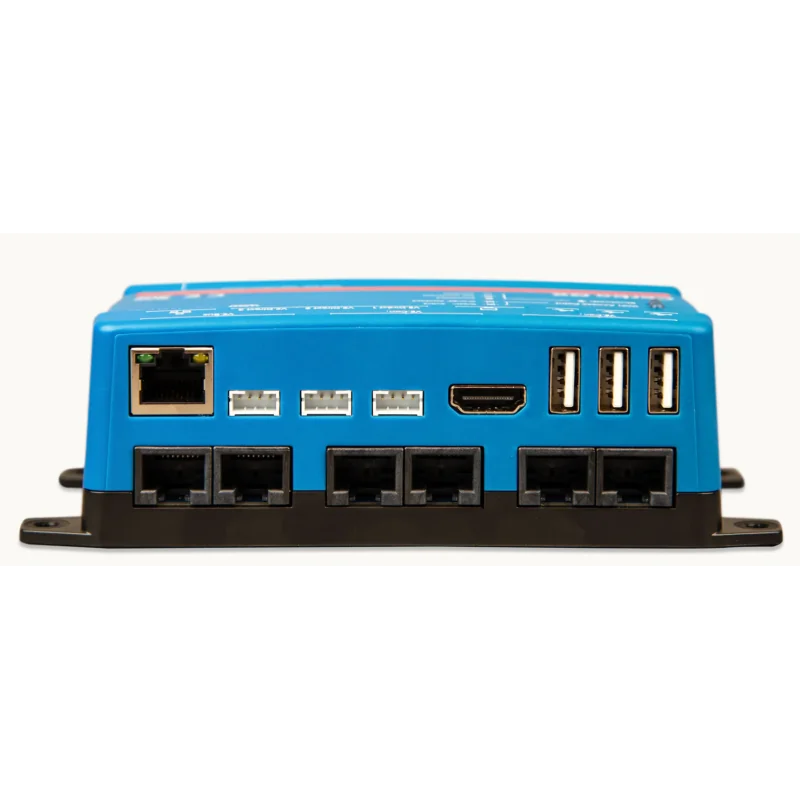

Victron Cerbo GX MK2 Monitoring System

Victron Cerbo GX MK2 – Advanced monitoring and energy control center

Victron Cerbo GX MK2 is an advanced communication and monitoring center designed to control solar installations, battery systems, inverters, chargers and energy systems from a single platform. It allows full real-time supervision of the entire installation both locally and remotely from anywhere.

Thanks to integration with Venus OS, Victron Remote Monitoring (VRM) and the VictronConnect application, the Cerbo GX MK2 allows users to view solar production, energy consumption, battery status, alarms and overall system performance from a mobile phone, tablet or PC.

Why is the Cerbo GX MK2 an important evolution compared to the original Cerbo GX?

The Cerbo GX MK2 represents an important evolution within the Victron Energy GX ecosystem. Although both devices are visually very similar, internally the MK2 incorporates significant improvements specially designed for modern installations and increasingly complex energy systems.

These improvements are mainly focused on:

• Greater CAN communication flexibility
• More expansion possibilities through USB
• Better integration with modern systems
• Improved communication stability
• Better preparation for advanced installations and future expansions

Real differences between Cerbo GX and Cerbo GX MK2 explained in a simple way

2 fully functional VE.Can ports

One of the main improvements of the MK2 is that it includes 2 fully configurable VE.Can ports.

In the original Cerbo GX:

• 1 port was VE.Can
• 1 port was fixed BMS-Can

In the new MK2:

• Both ports can be configured freely
• They can operate as VE.Can, BMS-Can or RV-C
• It allows connection of more complex systems
• It significantly improves integration with batteries and advanced installations

This is especially useful in installations with:

• CAN-Bus batteries
• Multiple Victron devices
• Industrial systems
• Advanced camper installations
• Marine and boating applications

Isolated VE.Can: greater stability and safety

The MK2 also incorporates isolation on one of the VE.Can buses, improving communication stability and helping reduce possible electrical interference in complex installations.

This provides:

• Greater reliability
• More stable communications
• Better performance in large installations
• Improved communication safety

All 3 USB ports are fully functional

Another very important difference is the management of the USB ports.

In the original Cerbo GX:

• 2 USB ports were fully functional
• 1 USB port was mainly intended for power supply

In the Cerbo GX MK2:

• All 3 USB ports are fully functional

This allows multiple accessories and peripherals to be connected simultaneously, for example:

• 4G or LTE modems
• GPS devices
• USB storage drives
• Adapters
• Additional monitoring devices

In advanced installations this provides much greater flexibility.

Better prepared for modern installations

The Cerbo GX MK2 also improves integration with:

• RV-C
• NMEA 2000
• Energy automation
• Advanced camper systems
• Professional marine systems
• Complex solar installations

This makes the MK2 especially recommended for users who want an installation better prepared for future expansions.

Why is energy monitoring becoming increasingly important?

Modern solar installations integrate inverters, solar charge controllers, batteries, backup systems and energy automation. Having a centralized platform allows users to optimize performance and control the entire installation from a single interface.

In practice, this means:

• Complete remote control of the installation
• Visualization of solar production and consumption
• Battery status monitoring
• Fast fault detection
• Advanced energy optimization
• Reduction of technical service visits

The Victron GX system has become one of the most widely used monitoring solutions in self-consumption, off-grid systems, marine, camper and industrial installations.

Venus OS: the core of the GX ecosystem

The Cerbo GX MK2 operates using Venus OS, the operating system developed by Victron Energy for advanced energy monitoring and control.

Venus OS centralizes all energy system information and allows:

• Real-time monitoring
• Remote access through VRM
• Remote system configuration
• Online firmware updates
• Advanced visualization of consumption and production
• Complete integration with Victron devices

Real advantages of the Victron Cerbo GX MK2

Advanced remote monitoring

Allows users to supervise the entire installation from anywhere through VRM.

Centralized control

Centralizes information from inverters, solar charge controllers, batteries, chargers and compatible systems.

GX Touch compatible

Allows integration with GX Touch 50 and GX Touch 70 touchscreen displays.

Energy automation

Allows automation of actions, alarms and intelligent responses depending on the energy status of the system.

Access from mobile, tablet or PC

Accessible through VictronConnect, web browser and remote console.

Prepared for advanced installations

Designed for complex energy systems and professional monitoring.

Recommended applications

• Residential solar installations
• Off-grid systems
• Backup energy systems
• LiFePO4 battery installations
• Campers and motorhomes
• Marine and boating applications
• Industrial applications
• Professional energy monitoring

Compatibility and integration

The Cerbo GX MK2 has been designed for complete integration within the Victron Energy ecosystem.

• Victron inverters
• Victron chargers
• MPPT solar charge controllers
• Compatible battery systems
• VE.Bus systems
• VE.Direct devices
• VE.Can
• GX Touch
• VRM portal

It allows centralized monitoring of the complete energy installation from a single platform.

Technical specifications

What users look for today in a GX system

• Advanced remote monitoring
• Centralized energy management
• Compatibility with batteries and inverters
• Access from mobile or PC
• Energy automation
• Complete system integration
• Venus OS and VRM compatibility
• Greater communication flexibility

Frequently asked questions about the Cerbo GX MK2

What is the difference between Cerbo GX and Cerbo GX MK2?

The MK2 incorporates major connectivity and communication improvements, including 2 configurable VE.Can ports and 3 fully functional USB ports, as well as better integration with modern systems.

Can it monitor solar installations?

Yes, it allows monitoring of inverters, batteries, solar charge controllers and energy consumption from a single platform.

Can I access it remotely?

Yes, through VRM, VictronConnect and remote access from a web browser.

Is it compatible with LiFePO4 batteries?

Yes, it is compatible with multiple battery systems and BMS solutions compatible with Victron.

Is it compatible with GX Touch displays?

Yes, it is compatible with GX Touch 50 and GX Touch 70.
