Victron Energy Smart IP43 Charger 24/16(1+1) 120-240V (PSC241651095)
€281.80
Tax included
Victron Energy Smart IP43 Charger 24/16(1+1) 120-240V (PSC241651095). Original Victron Energy product identified by its manufacturer reference. Suitable for electrical, solar, marine and mobile systems when its specifications match the installation. PSC241651095.
Charging technologies: Flooded lead-acid, AGM, gel and LiFePO4; select the appropriate charging profile.
EAN/GTIN: 8719076053521

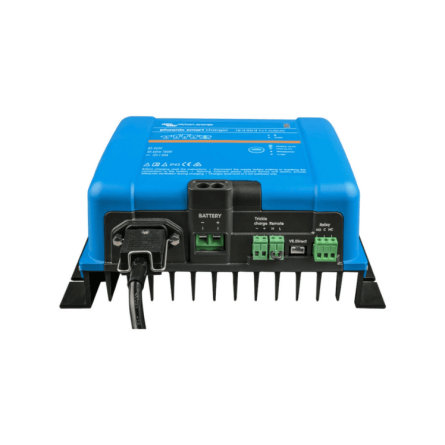

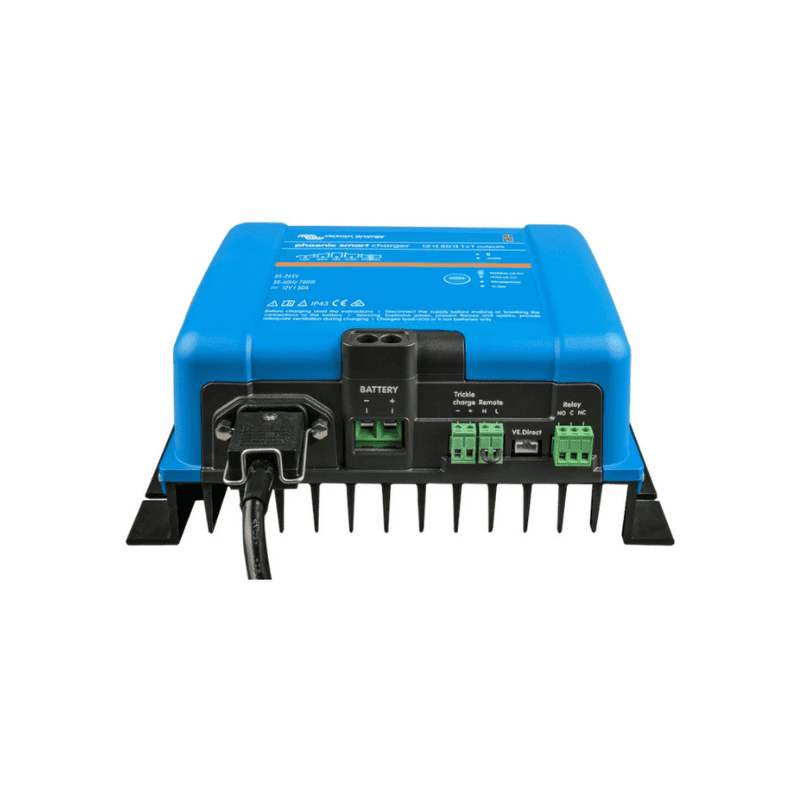

Victron Smart IP43 Charger 24/16 (1+1) 120-240V
The Victron Smart IP43 24/16 (1+1), part number PSC241651095, is an intelligent 24V 16A battery charger with one main output and an auxiliary output rated up to 4A for maintaining a starter battery. It is designed for charging and maintaining 24V battery banks in marine, e-mobility, leisure, off-grid, industrial and backup power systems.
Compatible battery technologies
Supports the following rechargeable battery technologies, provided that the bank voltage matches the charger output and the battery capacity and permitted charging current are respected.
| Technology | Compatibility and settings |
|---|---|
| Conventional flooded lead-acid / WET | Compatible with the lead-acid programme specified by the battery manufacturer. |
| AGM / VRLA | Compatible. Use the absorption and float voltages recommended for the battery; AGM batteries do not all require the same settings. |
| Gel / VRLA | Compatible with the correct gel profile and voltage limits. Avoid overvoltage and reconditioning unless authorised by the battery manufacturer. |
| LiFePO4 lithium | Compatible with the lithium/LiFePO4 profile and a suitable BMS. Do not use lead-acid equalisation or reconditioning. |
Select Normal, High or Li-ion using the controls available on this model or VictronConnect. AGM and gel are not universal programmes: the final settings must match the battery datasheet.
Not intended for non-rechargeable cells, NiMH or Ni-Cd batteries. Chemical compatibility does not mean that every capacity or voltage is suitable. For LiFePO4, also observe charging temperature limits and BMS protections.
Its adaptive six-stage charging algorithm manages the charging process efficiently, while built-in Bluetooth and VictronConnect provide straightforward configuration, monitoring, history and alarm settings from a phone, tablet or computer.
Main benefits
- Main 24V, 16A charging output plus an auxiliary output rated up to 4A for a starter battery.
- Suitable for lead-acid and LiFePO4 batteries when the correct profile is selected.
- Adaptive six-stage and fully programmable charging algorithm.
- Built-in Bluetooth for setup and monitoring through VictronConnect.
- VE.Direct connectivity for integration with GX devices and Victron monitoring systems.
- VE.Smart Networking support for compatible voltage, current and temperature sensing.
- Power-supply mode for suitable 24V loads within the unit's operating limits.
- High efficiency and natural-convection cooling without a fan.
Intelligent charging for 24V batteries
The charger automatically controls the charging stages to restore the battery, complete absorption and maintain it without continuous overcharging. Preset modes cover conventional lead-acid, high-voltage absorption and lithium batteries. Custom charge settings can also be configured in VictronConnect in accordance with the battery manufacturer's requirements.
The 24/16 (1+1) designation identifies a 16A main output for the service bank and an auxiliary output, limited to 4A, for maintaining a starter battery.
Bluetooth, VE.Direct and system monitoring
VictronConnect displays charge status, voltage, current and operating history. VE.Direct enables connection to a GX device so system information can be centralised and, where Internet connectivity is available, monitored remotely through the Victron ecosystem.
VE.Smart Networking can use compatible external voltage and temperature measurements, helping the charger compensate for cable losses and respond to actual battery conditions.
Recommended applications
- 24V service battery banks in marine installations.
- Light electric vehicles, mobility equipment and leisure systems.
- Off-grid solar systems and auxiliary 24V storage.
- Industrial equipment and backup power installations.
- Battery maintenance during extended periods of inactivity.
Technical specifications
| Model | Victron Smart IP43 Charger 24/16 (1+1) 120-240V |
| Victron part number | PSC241651095 |
| EAN/GTIN | 8719076053521 |
| Nominal battery voltage | 24V |
| Maximum charge current | 16A |
| Battery outputs | 1 main 16A output + 1 auxiliary output up to 4A |
| Nominal input | 120-240V AC |
| AC input range | 85-250V AC; full power from 100V AC and start-up from 90V AC |
| Input frequency | 45-65Hz |
| Maximum efficiency | 96% at 230V AC; 94% at 120V AC |
| Communication | Bluetooth and VE.Direct |
| Configuration | VictronConnect app |
| Charging algorithm | Adaptive six-stage, programmable |
| Battery compatibility | Lead-acid and LiFePO4 with the correct profile |
| Dimensions | 180 × 249 × 100mm |
| Weight | 3.5kg |
Compatibility checklist
- Confirm that the battery bank is 24V and accepts up to 16A charging current.
- Select a charge profile that matches the battery technology and manufacturer guidance.
- Check that the available supply falls within the charger's AC input range.
- Size cables, fuses and protective devices for the installation.
- Allow the required ventilation clearance and follow the specified mounting position.
Complete your Victron system
This charger is part of the Victron Energy range. To build a compatible installation, compare our battery chargers and power supplies, choose suitable solar batteries and add battery monitors for clear system information. Always check voltage, current and connection compatibility before combining components.
Frequently asked questions
Can it charge a 12V or 24V battery?
No. This version is intended for 24V battery banks. Choose the corresponding Smart IP43 model for another system voltage.
Is it suitable for LiFePO4 batteries?
Yes. It includes a lithium charging mode. The battery must have the required protection and the selected profile must follow its manufacturer's instructions.
Can it be configured from a phone?
Yes. Built-in Bluetooth provides configuration and monitoring through VictronConnect.
How many battery banks can it charge?
The Smart IP43 24/16 (1+1) has a main output for the 24V service bank and an auxiliary output of up to 4A for maintaining a starter battery.
PSC241651095
