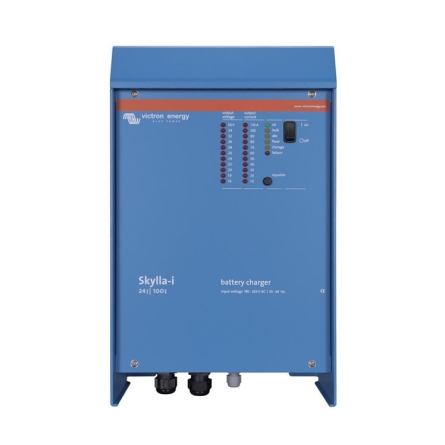

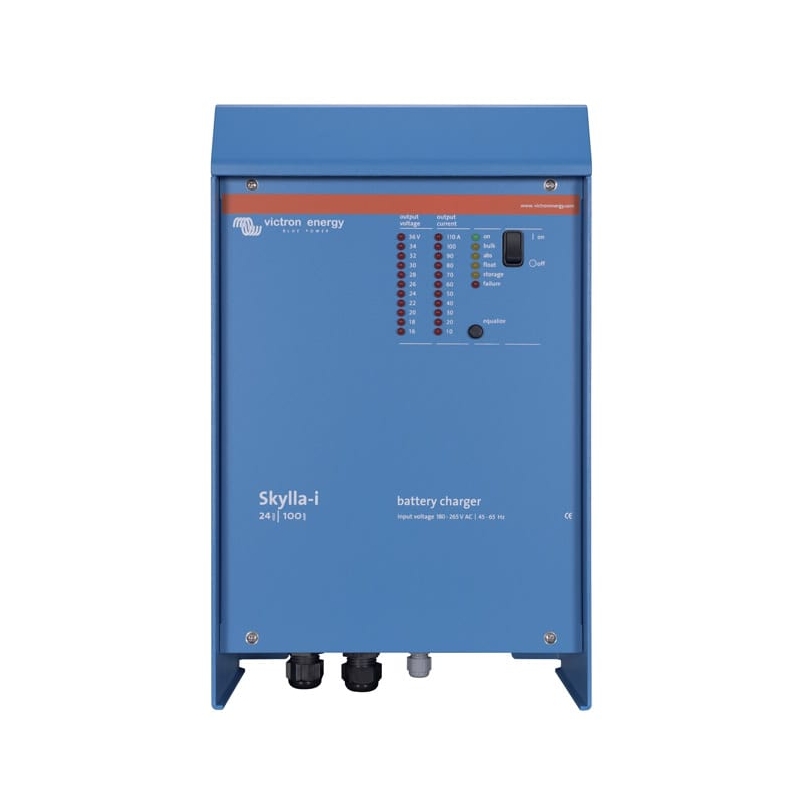

Victron Energy Skylla-i 24/100(3) 230V (SKI024100002)
€1,233.67
Tax included
Victron Energy Skylla-i 24/100(3) 230V (SKI024100002). Original Victron Energy product identified by its manufacturer reference. Suitable for electrical, solar, marine and mobile systems when its specifications match the installation. SKI024100002.
Charging technologies: Flooded lead-acid, AGM, gel and LiFePO4; select the appropriate charging profile.
EAN/GTIN: 8719076026259
Victron Skylla-i 24/100(3) 230V battery charger
The Victron Skylla-i 24/100(3) (SKI024100002) is a professional high-power 24V charger for battery banks in marine, industrial, backup and stationary applications. It has three isolated outputs for up to three banks; the maximum combined charging current is 100A.
Compatible battery technologies
Supports the following rechargeable battery technologies, provided that the bank voltage matches the charger output and the battery capacity and permitted charging current are respected.
| Technology | Compatibility and settings |
|---|---|
| Conventional flooded lead-acid / WET | Compatible with the lead-acid programme specified by the battery manufacturer. |
| AGM / VRLA | Compatible. Use the absorption and float voltages recommended for the battery; AGM batteries do not all require the same settings. |
| Gel / VRLA | Compatible with the correct gel profile and voltage limits. Avoid overvoltage and reconditioning unless authorised by the battery manufacturer. |
| LiFePO4 lithium | Compatible with the lithium/LiFePO4 profile and a suitable BMS. Do not use lead-acid equalisation or reconditioning. |
Select the battery type in the charger settings. For lithium installations, integrate BMS charge permission using the compatible interface or remote control appropriate to the system.
Not intended for non-rechargeable cells, NiMH or Ni-Cd batteries. Chemical compatibility does not mean that every capacity or voltage is suitable. For LiFePO4, also observe charging temperature limits and BMS protections.
Its seven-stage adaptive algorithm, lithium charging capability and VE.Can communication support demanding installations. Before ordering, check battery chemistry and capacity, charging voltages, available AC power and protection. For lead-acid batteries, Victron gives a recommended capacity range of 500–1,000Ah for this model.
Key features
- 24V charger with up to 100A total output.
- Three isolated full-current outputs, limited to 100A combined.
- Seven-stage adaptive charging and storage mode.
- Three-stage Li-ion programme and compatible remote control.
- Two VE.Can ports, synchronised parallel operation and power-supply mode.
Technical specifications
| Part number | SKI024100002 |
|---|---|
| Model | Skylla-i 24/100(3) |
| Nominal input | 230V AC |
| AC input range | 185–265V AC, 45–65Hz |
| DC input range | 180–350V DC |
| Charge current | 100A maximum combined |
| Outputs | 3 isolated |
| Absorption / float / storage | 28.8V / 27.6V / 26.4V |
| Output voltage range | 20–36V adjustable |
| Battery connection | M8 bolts |
| Protection rating | IP21 |
| Dimensions | 405 × 250 × 150mm |
| Weight | 7kg |
Applications and compatibility
Suitable for three 24V service banks on boats, in workshops, specialist vehicles and backup systems, provided that they use the configured charging profile. The three outputs do not each deliver 100A simultaneously; they share a 100A maximum. Browse our chargers and power supplies, solar batteries, battery monitors and the complete Victron Energy range.
Frequently asked questions
Does it provide 3 × 100A? No. Each output can supply the available current, but the charger's combined maximum is 100A.
Can it charge LiFePO4 batteries? It has a Li-ion algorithm and remote/BMS control, but the voltages and control strategy required by the battery must be confirmed.
