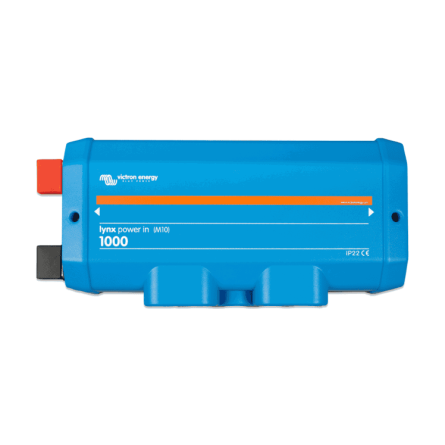

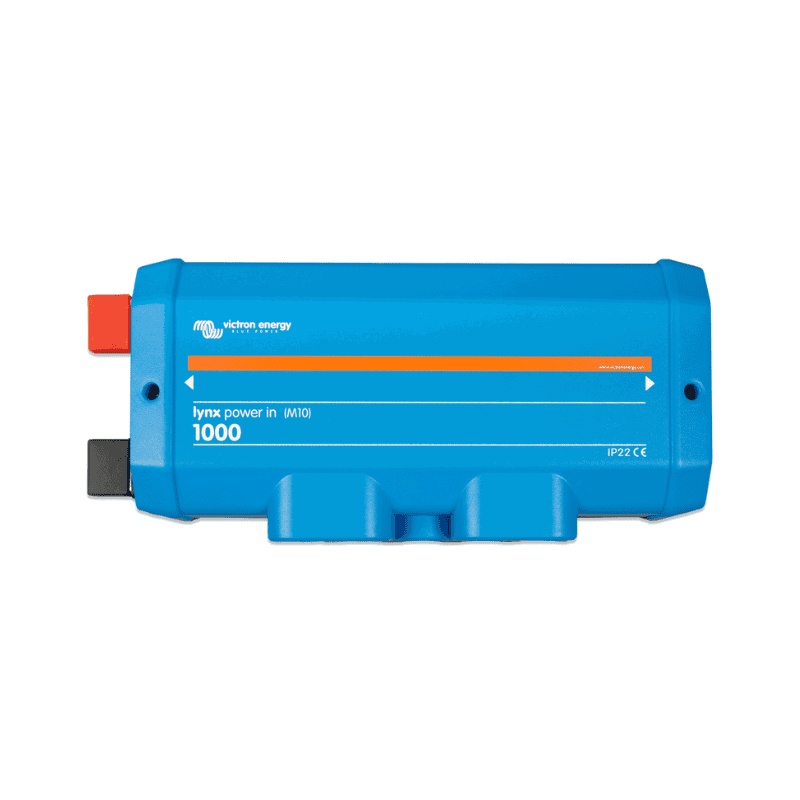

Victron Energy Lynx Power In (M10) (LYN020102010)

Victron Lynx Power In M10 DC distribution module

The Victron Lynx Power In M10 (LYN020102010) is a positive and negative busbar module for connecting batteries, chargers or loads to a Lynx DC distribution system. It provides four pairs of connections plus a ground point and is rated for 1000A continuously across 9–60V DC.

M10 refers only to the side joints that connect one Lynx module to another. Cable and fuse connections remain M8. This Power In does not contain fuses, battery monitoring or a BMS; those functions are added through the appropriate Lynx modules.

Main features

• Four connections for batteries or DC equipment.
• Positive and negative tinned-copper busbars.
• 1000A continuous rating over 9–60V DC.
• M10 module joints; M8 cable connections.
• Designed for the modular Lynx architecture.

Technical specification

Compatibility and installation

Size cables, lugs and protection for the intended current and isolate every source before removing the cover. Add the appropriate Lynx modules when fused outputs, battery monitoring or lithium management are required. Browse our accessories, lithium batteries, monitoring equipment and the full Victron Energy range.

Frequently asked questions

Are fuses included? No. Lynx Power In is an input busbar; protection must be designed separately or added with another Lynx module.

Are the cable terminals M10? No. M10 identifies the module-to-module joints; cable connection points are M8.
