Victron Energy Busbar 600A 8P +cover (VBB160080010)
€178.86
Tax included
Victron Energy Busbar 600A 8P +cover (VBB160080010). Original Victron Energy product identified by its manufacturer reference. Suitable for electrical, solar, marine and mobile systems when its specifications match the installation. VBB160080010.
EAN/GTIN: 8719076052234

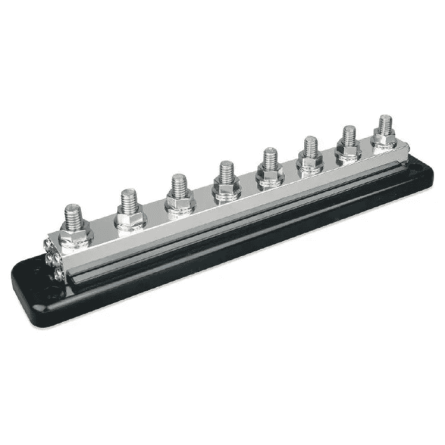

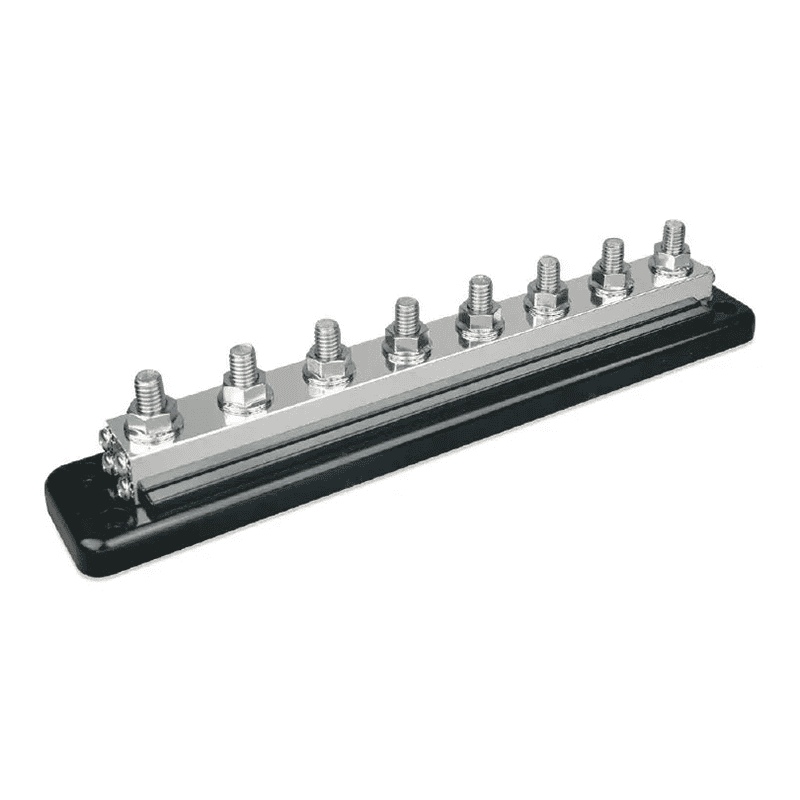

Victron Busbar 600A 8P with cover
The Victron Busbar 600A 8P (VBB160080010) is a common connection point for distributing direct current between several items of equipment. Its eight connection positions help organise batteries, inverters, chargers and other correctly protected DC circuits.
An ABS protective cover is included. The 600A rating is the busbar rating; it does not mean that any cable or fuse may be used. Every conductor and circuit must be sized for its current, length, temperature and applicable installation rules.
Key features
- Busbar current rating: 600A.
- Eight connection positions.
- ABS protective cover included.
- Central DC distribution for high-current installations.
- Victron part number VBB160080010.
Technical specifications
| Part number | VBB160080010 |
|---|---|
| Type | DC busbar |
| Current rating | 600A |
| Positions | 8 |
| Stud diameter | 9.53mm (3/8") |
| Dimensions with cover | Approx. 327 × 86 × 65mm |
| Cover | ABS, included |
Applications and safety
It can be used as a positive or negative node in a DC distribution system when spacing, insulation, tightening torques and protection are correctly designed. The cover reduces accidental contact but does not replace circuit fuses or a suitable enclosure. Browse our DC accessories, fuses, solar batteries and the complete Victron Energy range.
Frequently asked questions
Are fuses included? No. This is a covered busbar; fuses and fuse holders are selected separately.
Can it automatically carry 600A in any installation? No. Cables, terminals, temperature, connections and protection must all be engineered for the required current.
