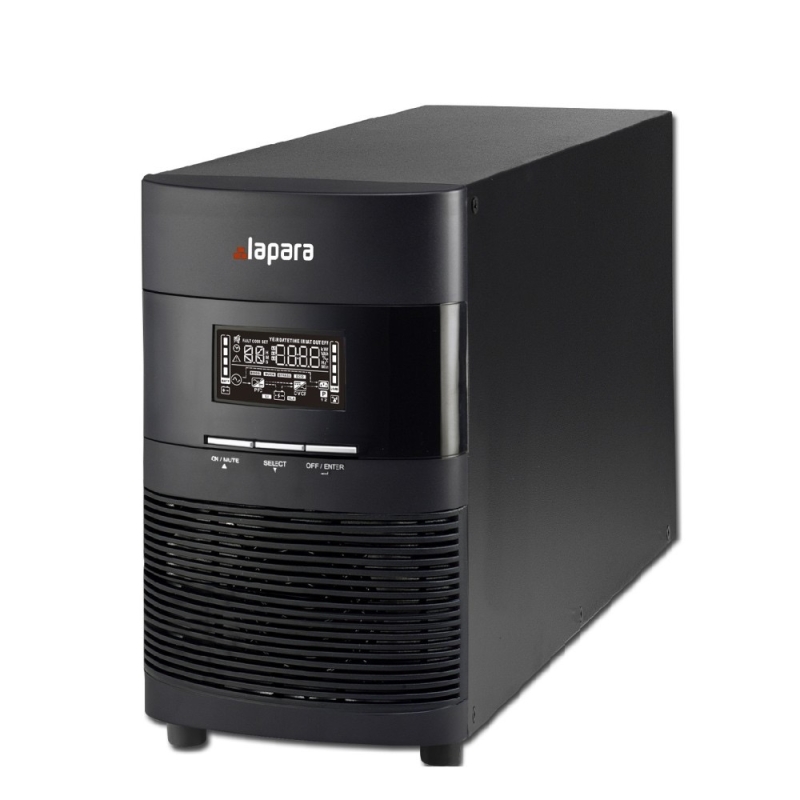

Sai Lapara online 1000VA

The UPS series ON-LCD is an UPS Online double-conversion real that provides a powerful and complete protection to sensitive devices.

Accepts a wide voltage input so it can work under harsh conditions. Is perfect for protecting servers and workstations.

Capacity:

• 1000VA / 1000W

Entry:

• Transfer low voltage: 160VAC / 140VAC / 120VAC / 110vac +/- 5% (based on % of load 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
• Return from low voltage: 175 VAC +/- 5%
• Transfer high voltage: 300 VAC +/- 5%
• Return of high voltage: 290 VAC +/- 5%
• Frequency range: 40Hz ~ 70Hz
• Phase: single Phase with ground
• Power Factor: >= 0.99 @ 220-230VAC (input voltage)

Output:

• Regulation of AC voltage (Battery Mode): +/- 3%
• Frequency range (synchronized): 47~53Hz or 57.0~63.0 Hz
• Frequency range (Battery Mode)) 50Hz +/-0.25 Hz or 60Hz +/-0.3 Hz
• Current Ratio of crest: 3:1
• Harmonic distortion: <= 3% THD (linear load) / <= 6% THD (non-linear load)
• Transfer time: AC to battery mode: zero / Inverter to Bypass: 4ms (typical)
• Output wave: pure sine Wave

Battery:

• Battery type: 12V/7Ah
• Number of batteries: 3
• Recharge time: 4 hours to 90%
• Load (max.): 1.0
• Charging voltage: 41.0 VDC +/- 1%

Indicators:

• UPS status, load level, battery level, input/output Voltage, timer discharge and fault conditions.

Audible alarms:

• Battery mode: sounding every 4 seconds
• Low battery: sounding every second
• Overload: sounding 2 times per second
• Fault: continuous sound

Connections:

• External socket: 4x IEC ( 2 programmable, 2 static)
• USB ports: 1
• RS232 ports: 1
• RJ45 ports Phone/Modem/Fax: 2 (input /output) protected
• Bay SNMP Module: 1 Module (SNMP optional)

Physical data:

• Net weight : 13.2 Kg
• Dimensions (FondoxAnchoxAlto) mm: 397 x 145 x 220 mm

Environment:

• Environmental conditions: 20-90% RH @ 0-40°C (Non-condensing)
• Noise level: less than 45 dB at 1 Meter

Management Software:

• Via USB/RS-232: Supports Windows 98 SE/ME/NT 4.x/2000/2003/XP/Vista/2008/7, Linux, Unix, and Mac
• Via optional SNMP: power Management through SNMP manager and web browser
