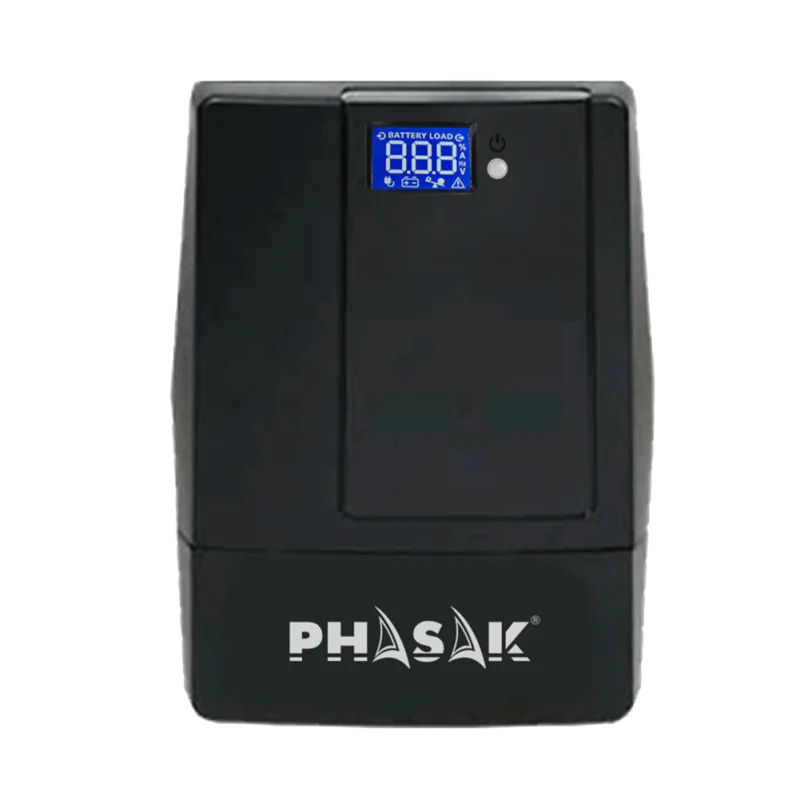

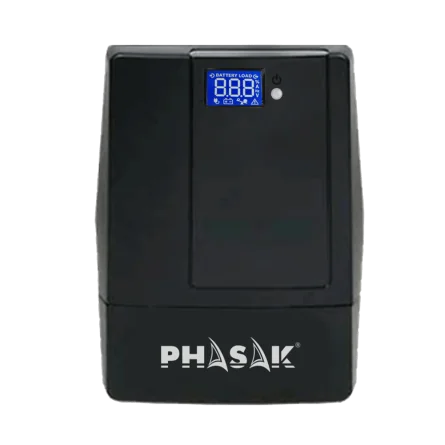

UPS Phasak 2000VA LCD USB with protection for RJ45

Phasak PH-9420 2000VA Interactive UPS with AVR

The Phasak PH-9420 is a 2000VA (1200W) line-interactive UPS designed to protect computers, servers, NAS systems and network equipment against power outages, voltage drops, surges and electrical noise. Its built-in Automatic Voltage Regulation (AVR) stabilises the output voltage without continuously using the battery, helping to extend battery lifespan.

This UPS is ideal for office environments, home networks and small business applications where reliable power protection and system stability are essential. The integrated LCD display allows real-time monitoring of operating status, load level and battery condition.

Main features

• Line-interactive UPS with Automatic Voltage Regulation (AVR).
• Power capacity of 2000VA / 1200W.
• Simulated sine wave output during battery operation.
• LCD display for system status and electrical parameters.
• Visual and audible alarms for overload, fault and battery status.
• Automatic restart after power recovery.
• Cold start function for battery-powered startup.
• Comprehensive protection against overload, short circuit and voltage fluctuations.

Technical specifications

• Input voltage range: 162 – 290 V.
• Input / output frequency: 50 / 60 Hz.
• Output voltage regulation: ±1 %.
• Power factor: 0.6.
• Transfer time: 2 – 6 ms.
• Noise level: approximately 40 dB.

Connectivity and interfaces

• 4 x AC output sockets (Schuko type).
• USB Type-B communication port for PC monitoring.
• RJ45 surge protection for network and data lines.

Battery

• 2 x 12 V 9 Ah sealed lead-acid AGM batteries.
• Typical backup time: approximately 12 minutes at full load and 5 minutes at half load.
• Typical recharge time: 5 – 6 hours.

Dimensions and weight

• Dimensions (W x H x D): 146 x 205 x 350 mm.
• Approximate weight: 11 kg.
• Colour: Black.

Environmental conditions

• Operating temperature: 0 – 40 °C.
• Operating humidity: 0 – 90 % non-condensing.

Recommended applications

• Desktop computers and workstations.
• Home and office networks (routers, switches, ONT).
• NAS systems, NVR/DVR and small servers.
• Sensitive electronic equipment requiring stable power.

Package contents

• Phasak PH-9420 2000VA UPS.
• Power cable.
• User manual and documentation.

Why choose this UPS?

The Phasak PH-9420 combines reliable battery backup, AVR voltage stabilisation and comprehensive electrical protection in a compact format. Its LCD display and communication interfaces make it a practical solution for protecting critical equipment in professional and home environments.

Frequently Asked Questions (FAQ)

Does this UPS work with generators?
This model is not designed for direct use with generators.

Are the batteries included?
Yes, the UPS is supplied with sealed AGM batteries pre-installed.

What type of output waveform does it provide?
It provides a simulated sine wave during battery operation.

Can it be monitored from a PC?
Yes, monitoring is possible via the USB communication port using compatible software.
